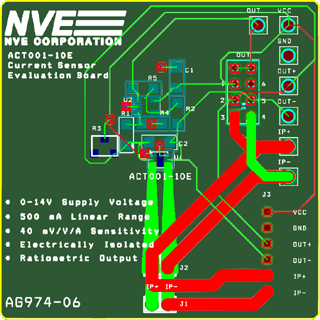

This 2” x 2” square evaluation board allows you to test the remarkable ACT001-10E current sensor and a common application circuit.
The ACT001-10E is a fully-isolated, inline current sensor with an on-chip current strap. A Wheatstone bridge manufactured with NVE’s state-of-the-art tunneling magnetoresistance (TMR) sensor elements detects the magnetic field from the input current across NVE’s unique polymer isolation barrier. |
