AG962-07E: SM125-10E Smart GMR Magnetometer Evaluation Kit

  • Part Number
  • AG962-07E
  • Resolution (bits)
  • Max. Temperature (°C)

Description:

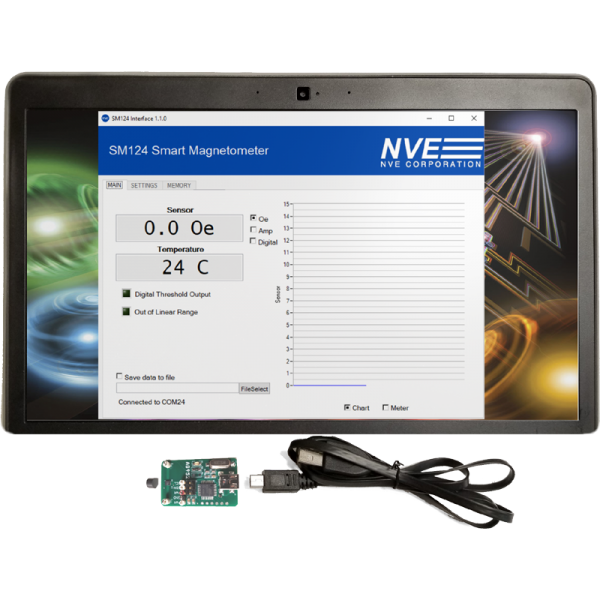

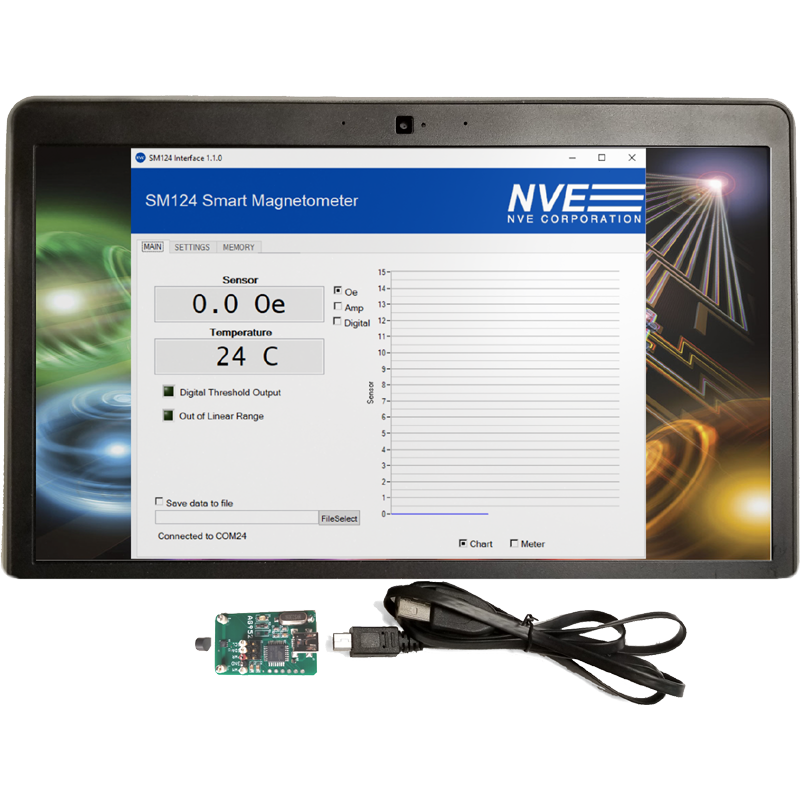

The AG962-07 Evaluation Kit has everything you need to calibrate, test, and evaluate the easy-to-use SM125-10E Smart Magnetometer. The kit includes:
    • A 1" x 1.6" (25 mm x 41 mm) evaluation board with:
          - an SM125-10E sensor.
          - a microcontroller connected to the sensor via I²C.
          - a current-carrying trace under the sensor for evaluating as a current sensor.
    • A simple, intuitive graphical user interface.
    • Simple software installation.
    • USB cable to connect the Evaluation Board to a computer.
    • A small ceramic magnet for evaluating as a proximity sensor.
$95.00
99999 in stock
Notify me when in stock
