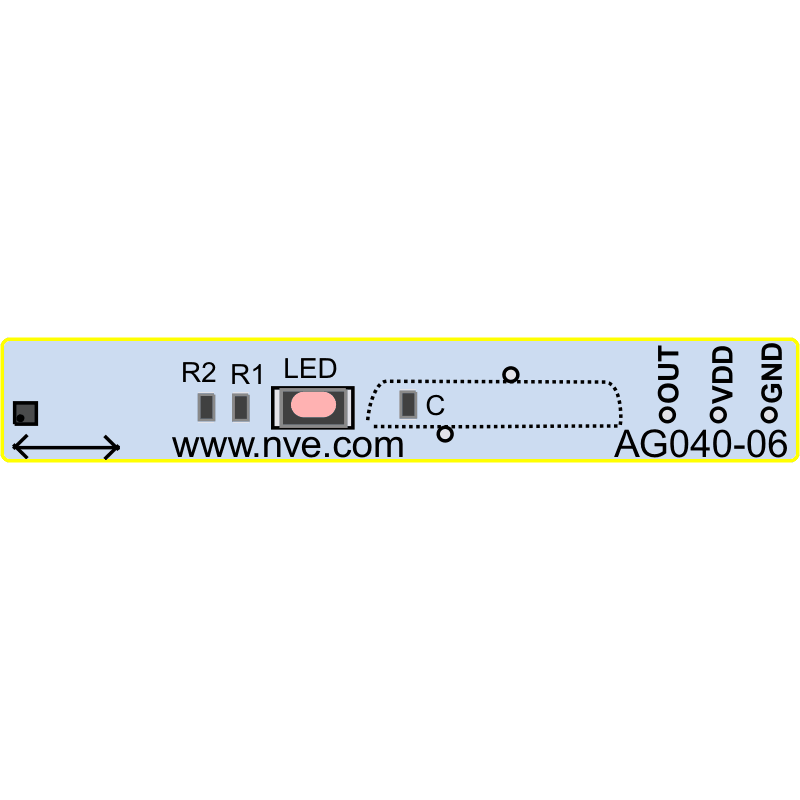

This kit includes an evaluation board with the ultraminiature, ultralow-power ADL021 magnetic switch.
The board has a digital output, and can be powered from a 3.3-volt nominal supply. An LED shows the output.
A miniature bar magnet is included so you can see for yourself how these remarkable sensors work.
Typical sensor quiescent current is only 100 nA, the sensor operate point is 20 Oe, and the sensors are 1.1 mm x 1.1 mm.
These miniature evaluation boards are just 0.25 x 1.57 inches (6 x 40 mm).
