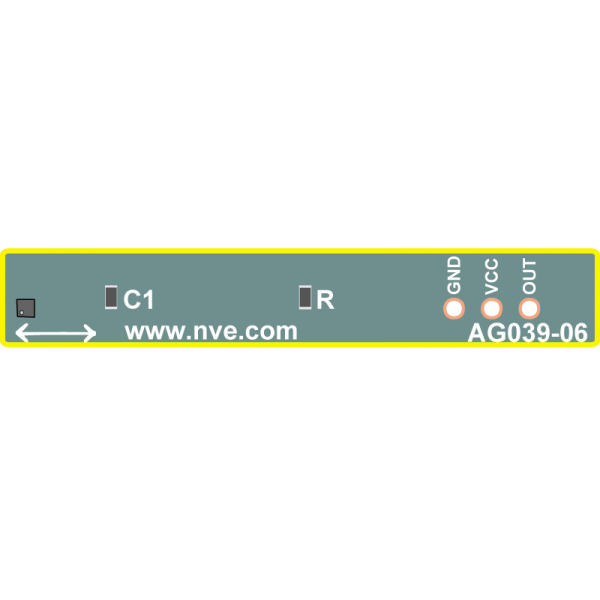

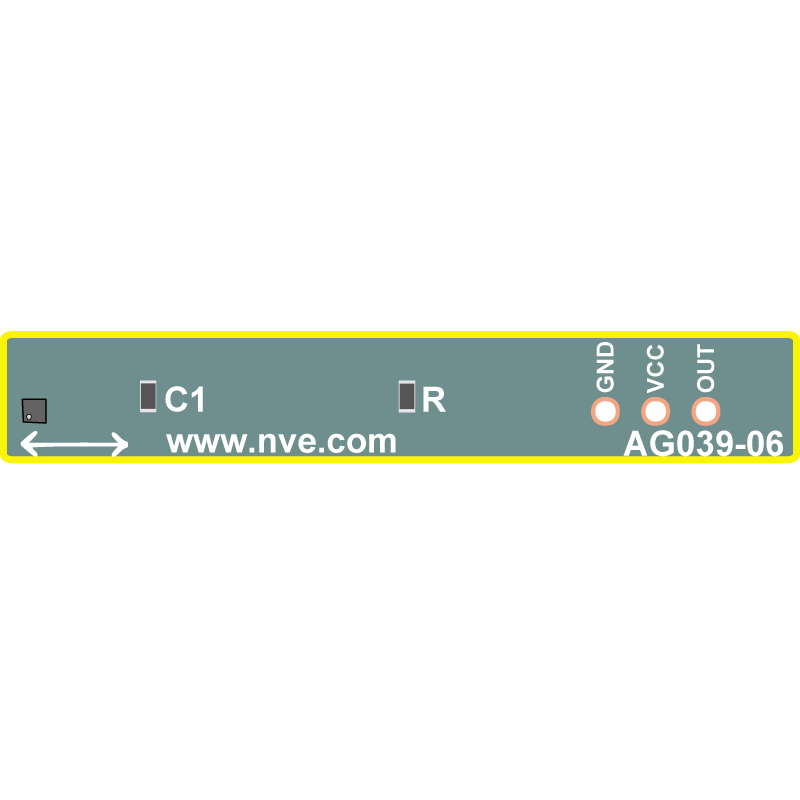

A 1.57 x 0.25 inch PCB for demonstrating 1.1 x 1.1 mm DFN4/DFN4 sensors such as AHLxxx-14E, ADLxxx-14E, and ALT0xx-14E, (order sensors separately). In addition to space for the sensor, the boards have locations for 0402-size pull-up resistors and bypass capacitors.
Note that since these boards use very small sensors, they require reflow or hot-air soldering techniques. |
