AFL200-00E: 1 mT Digital Switch, 2.7 V – 3.6 V

  • Part Number
  • AFL200-00E
  • Magnetic Operate Point  (mT)
  • Magnetic Release Point  (mT)
  • Supply Current (mA)
  • Output Current (mA)
  • Max. Temperature (°C)

Description:

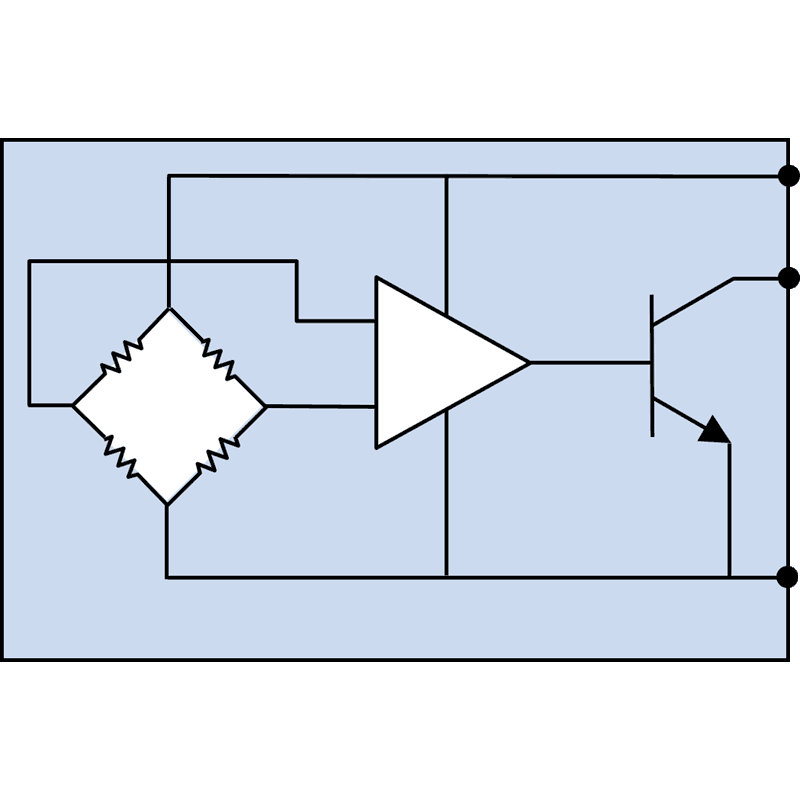

AFL200-00E low power switch sensor integrates GMR sensor elements with digital onboard signal processing electronics. The switch is designed for use in low power and battery applications, and features supply voltages down to 2.7 Volts and continuous operation at currents of 20-55 microamps. Like all NVE magnetic sensors, the AFL sensors have extremely precise magnetic operate and release points.

Features:

  • Precision Magnetic Operate Point -- 10 Oersteds
  • Normally OFF Current Sinking Digital Output
  • Frequency Response 0 to 250 KHz
  • Small, Low Profile Surface Mount Packages

Applications:

  • General Digital Field Sensing
  • Low Power Applications
  • Low Field Applications



Note: Parts must be purchased in tube quantities (multiples of 100) for quantities of 100 or more. Larger quantities are subject to NVE standard lead times.

This part is RoHS compliant.

$9.25
1 - 9 $9.25
10 - 99 $6.90
100 - 499 $5.05
500 + $4.15
7900 in stock
