The AFL006-10E is the world most sensitive magnetic switch. The switch is designed for use in low power and battery applications. It can operate from a single cell with supplies as low as 0.9 V and typical supply current of 55 microamps.
Like all NVE magnetic sensors, the AFL006-10E has extremely precise magnetic operate and release points.
Features:
- 4 Oe typical operate point for ultrahigh sensitivity
- 0.9 V – 2 V operating voltage for single-cell battery operation
- Less than 100 microwatts power consumption

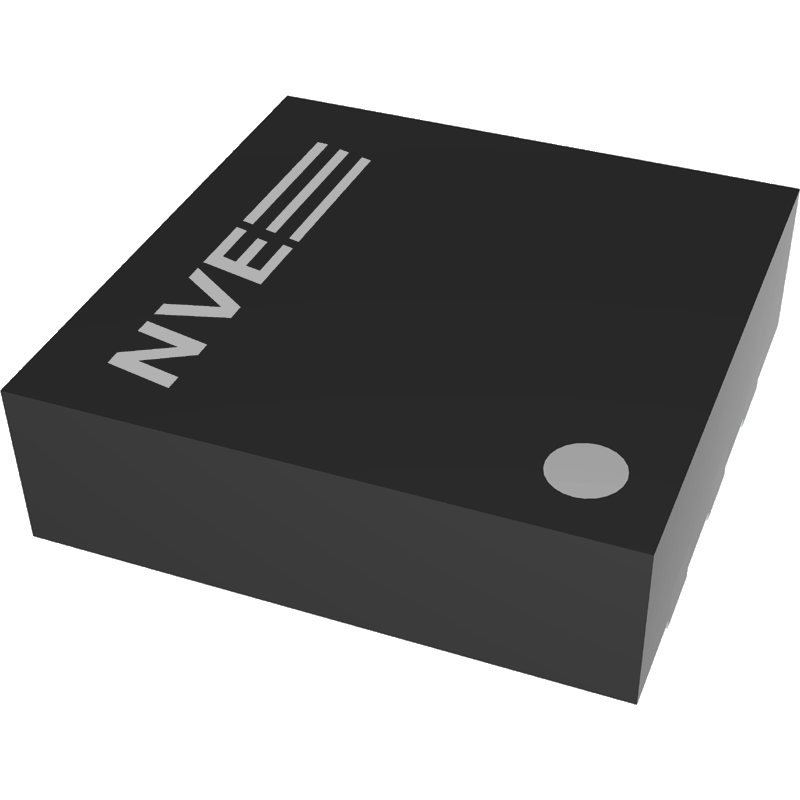

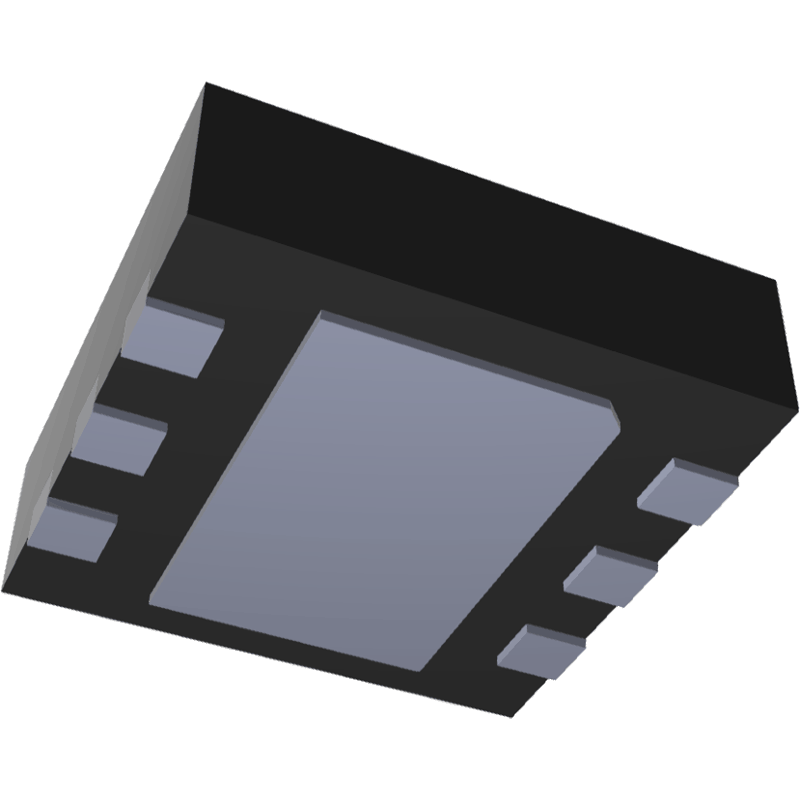

- 2.5 mm x 2.5 mm x 0.8 mm DFN6 for miniaturization
Applications include:
- Portable instruments
- Utility meters
- Noncontact overcurrent protection
Note: Parts must be purchased in multiples of 100 for quantities of 100 or more. Larger quantities are subject to NVE standard lead times.
This part is RoHS compliant.
