AET500-02E: 5 mm, Half-Bridge TMR Rotational / Linear Sensor, SOIC

  • Part Number
  • AET500-02E
  • Bridge Resistance (kΩ)
  • Max. Temperature (°C)
  • Pole Pitch (mm)

Description:

AET500-02E sensors can be used with multipole ring magnets as rotary encoders or with magnetic scale tapes as linear motion sensors. High sensitivity allows for wide airgaps and accommodates mechanical tolerances.

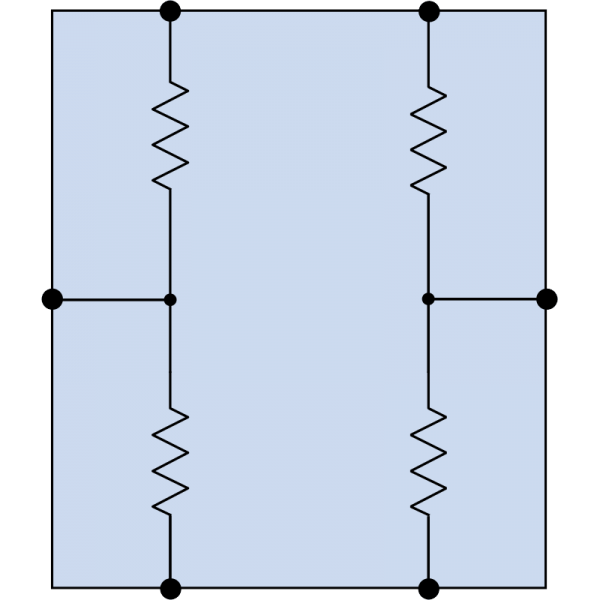

The half-bridge configuration maximizes noise immunity and provides large 300 mVpp/V output signals. Sine and cosine outputs provide direction information.

Evaluation and Demonstration Kits are also available.
$5.71
1 - 9 $5.71
10 - 99 $4.39
100 - 499 $3.07
500 + $2.19
1499 in stock
