AET075F-00E: 0.75 mm, Full-Bridge TMR Rotational / Linear Sensor, MSOP

  • Part Number
  • AET075F-00E
  • Bridge Resistance (kΩ)
  • Max. Temperature (°C)

Description:

AET075F-00E sensors can be used with multipole ring magnets as rotary encoders or with magnetic scale tapes as linear motion sensors. High sensitivity allows for wide airgaps and accommodates mechanical tolerances.

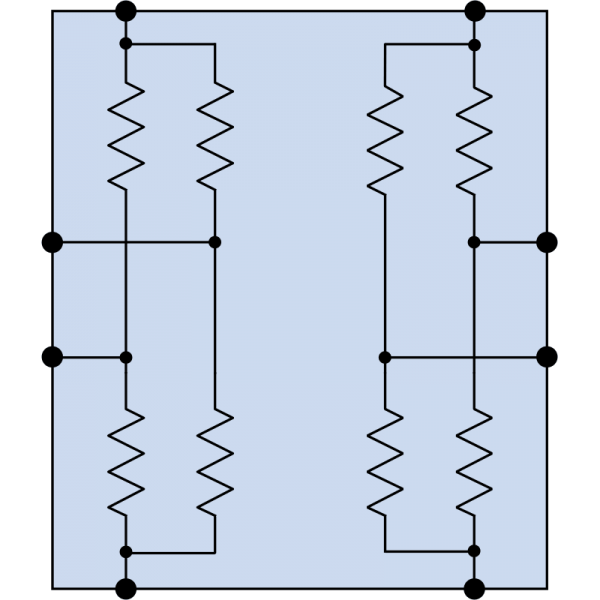

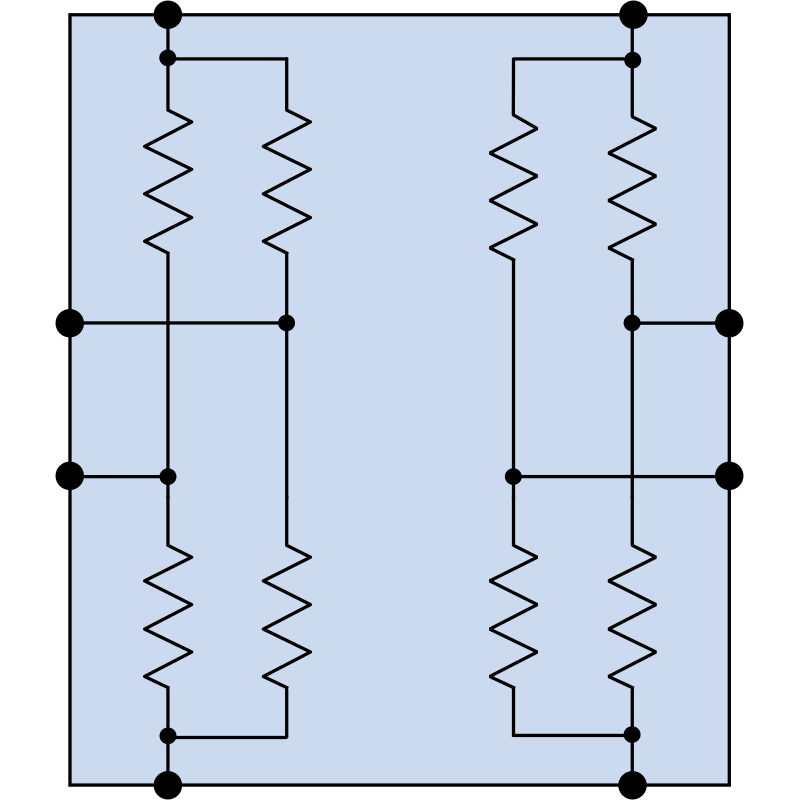

The full-bridge configuration maximizes noise immunity and provides large 600 mVpp/V output signals. Sine and cosine outputs provide direction information.

Evaluation and Demonstration Kits are also available.
$5.71
1 - 9 $5.71
10 - 99 $4.39
100 - 499 $3.07
500 + $2.19
99999 in stock
Notify me when in stock
