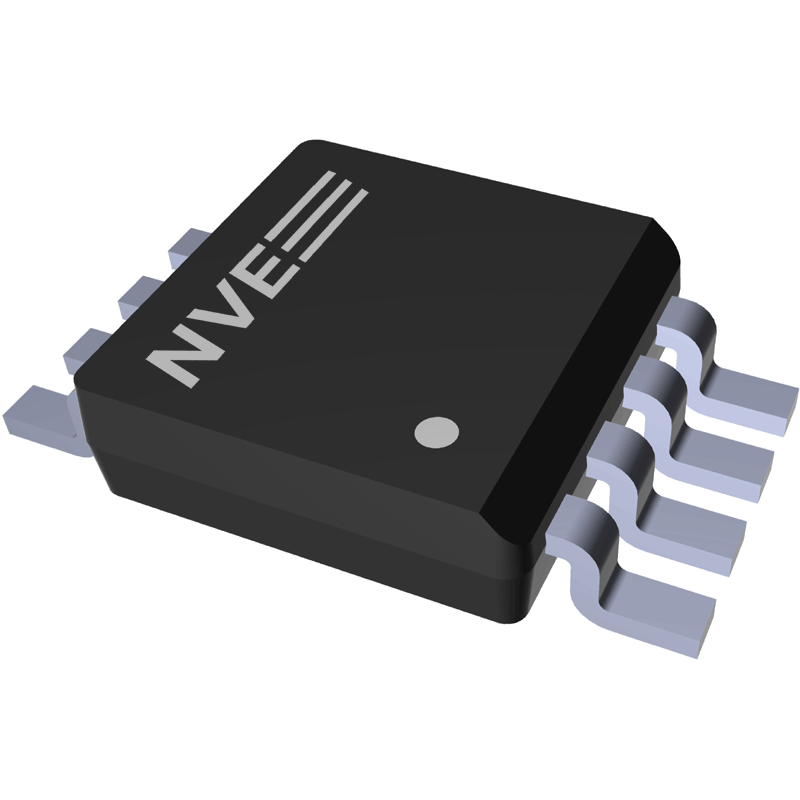

ADV001-00E: 0.4 mT Bipolar Switch, MSOP

  • Part Number
  • ADV001-00E
  • Magnetic Operate Point  (mT)
  • Magnetic Release Point  (mT)
  • Supply Current (mA)
  • Output Current (mA)
  • Max. Temperature (°C)

Description:

NVE ADV001-00E is a GMR Digital Switch using a bipolar output GMR material. This material allows the sensor to maintain an operate point with the application of a negative (South) magnetic field, and a release point with the application of a positive (North) magnetic field. The part is ideal for use with magnetic encoders that have alternating North/South poles, or in any other application where one polarity of field is required to turn the part on, and the opposite polarity is required to turn it off.

Features:

  • Bipolar Operation (south field ON, north field OFF)
  • Extremely Sensitive Magnetic Operate Point -- 4 Oersteds
  • Digital Output
  • Frequency Response to >100 KHz
  • Small, Low Profile Surface Mount Packages

Applications:

  • General Digital Field Sensing
  • Pneumatic Cylinder Position Sensing
  • Speed Sensing

Note: Parts must be purchased in tube quantities (multiples of 100) for quantities of 100 or more. Larger quantities are subject to NVE standard lead times.

This part is RoHS compliant.

$3.75
1 - 9 $3.75
10 - 99 $4.35
100 - 499 $3.03
500 + $2.09
30928 in stock
