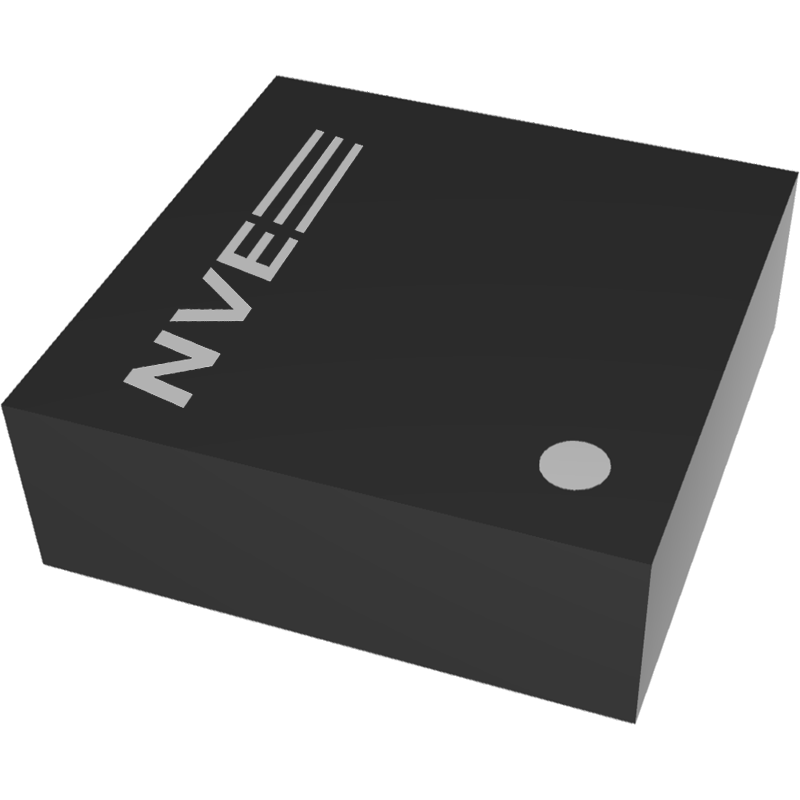

NVE ADT923-14E Nanopower Switch integrates TMR sensor elements with digital onboard signal processing. Continuous operation allows high frequency switching. The part is packaged in an ultraminiature DFN4.
Features:
- 3.2 mT (32 Oe) Digital Switch

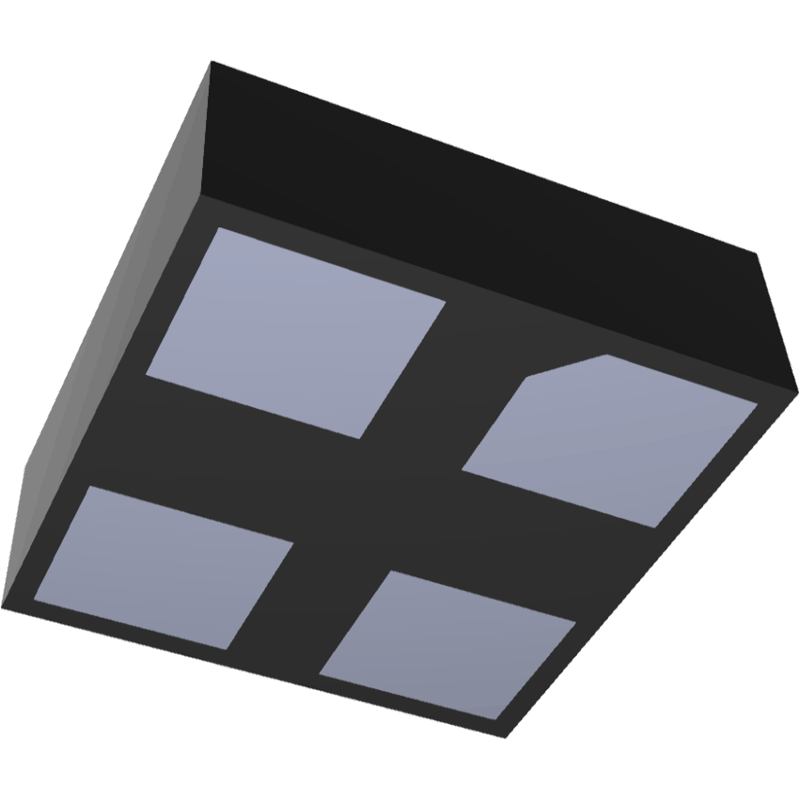

- Ultraminiature 1.1 mm x 1.1 mm x 0.35 mm DFN4 package
- 2.4 to 4.2 V
- 1 microamp quiescent current at 3 V without duty-cycling
- Up to 20 kHz switching frequency
- Ultraminiature 1.1 mm x 1.1 mm x 0.35 mm DFN4 package
Applications:
- Battery-Powered Devices
- Portable Instruments
- Wearables
