NVE ADL924-14E Nanopower Switch integrates GMR sensor elements with digital onboard signal processing. Continuous operation allows high frequency switching. The part is packaged in an ultraminiature DFN4.
Features:

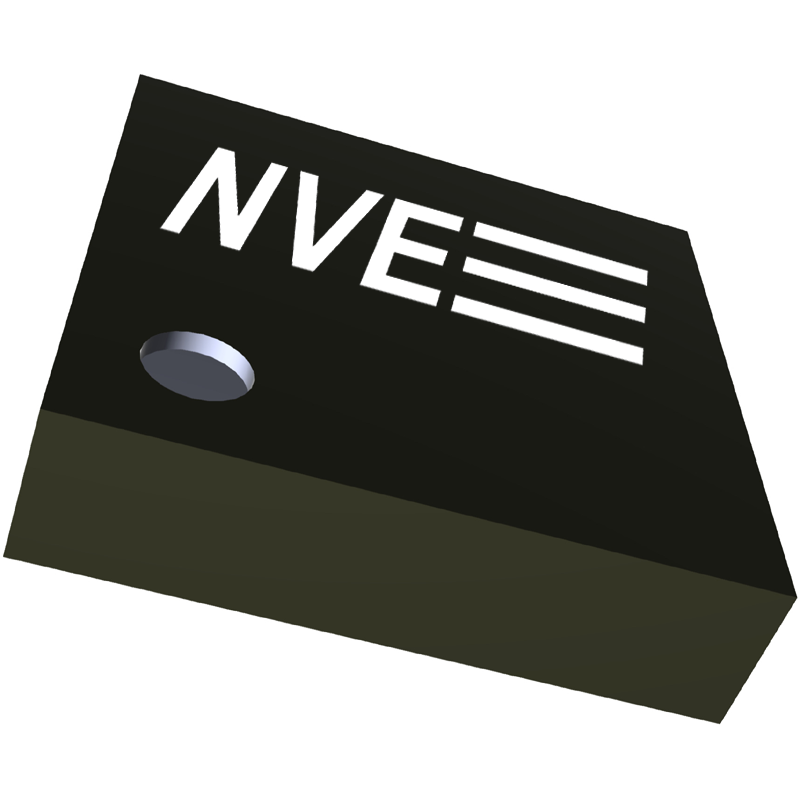

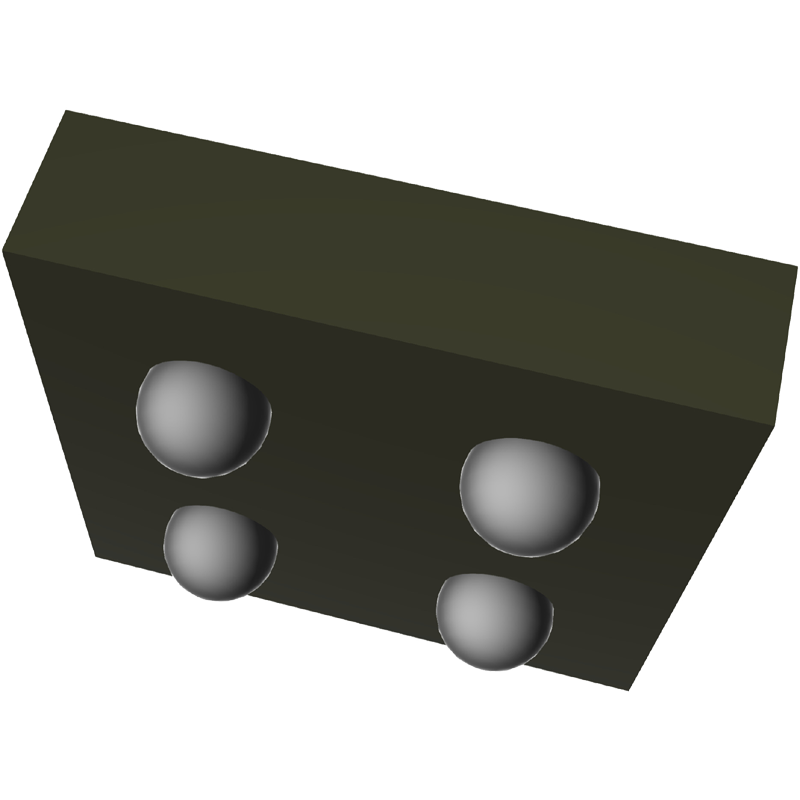

- Ultraminiature 1.1 mm x 1.1 mm x 0.35 mm DFN4 package
- 2.4 to 4.2 V
- Typical Power Consumption 84 microwatts at 2.4 V without duty-cycling
- 250 kHz Operating Frequency
- Digital Switch Output
Applications:
- Battery-Powered Devices
- Portable Instruments
