ADA-Series magnetic switch sensors use advanced sensing elements that eliminate double-switching artifacts.
The robust parts have an extended −40 to 150 °C temperature range for harsh industrial environments and operate from 4.5 to 30-volt power supplies. The sensor elements can withstand magnetic fields up to 1400 mT without their operation being disturbed, making them immune to the effects of high external currents or strong motor magnets.
Features:
-
Ideal for cylinder position sensor applications
-
Immune to double-switching
-
Normal operation up to 1400 mT magnetic field
-
High-temperature operation up to 150 °C
-

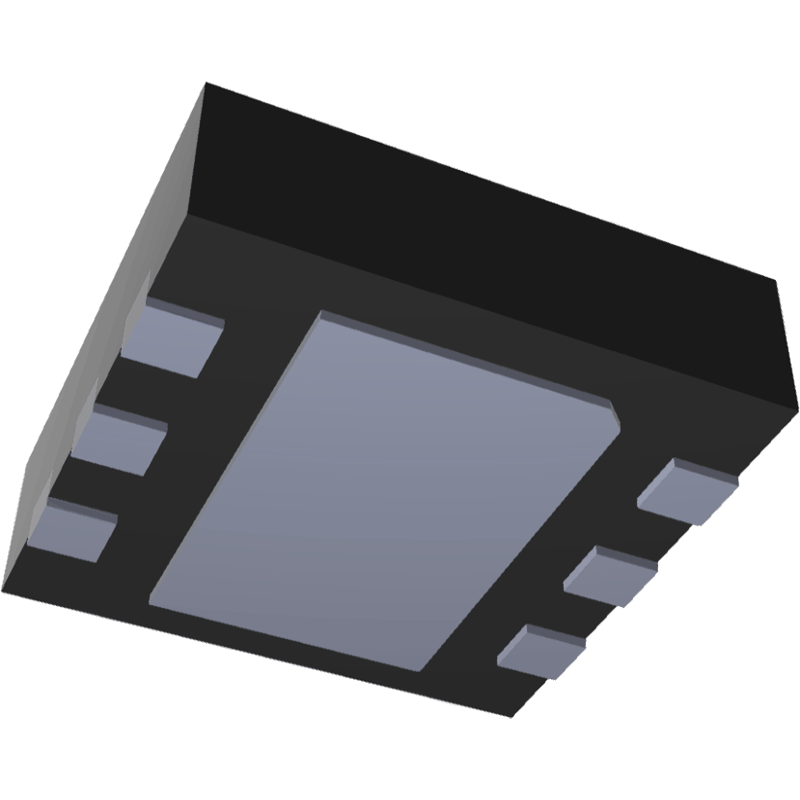

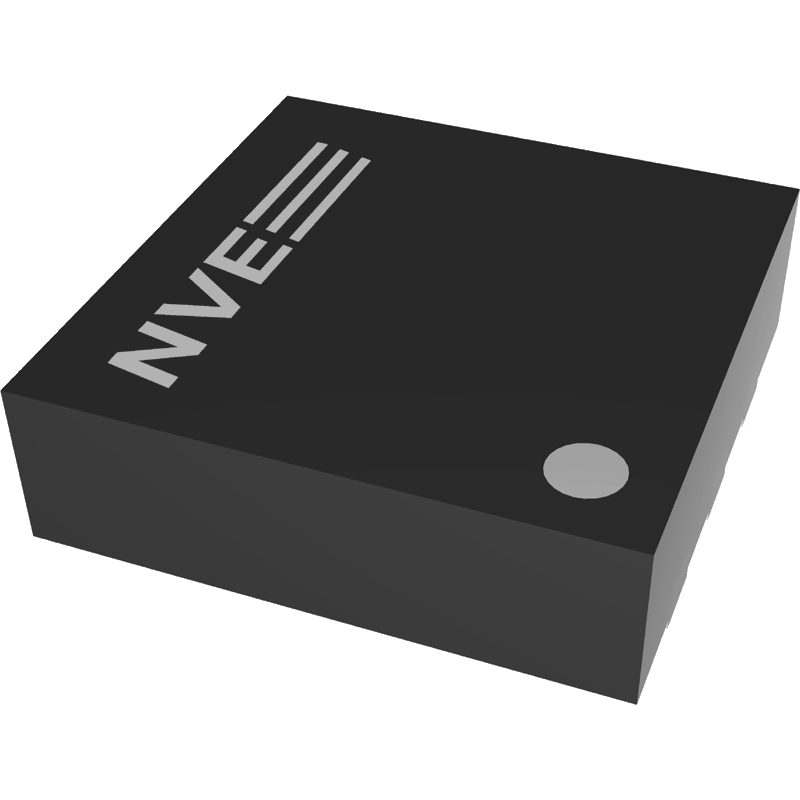

Ultraminiature 2.5 x 2.5 mm DFN6
Applications:
Note: Parts must be purchased in tube quantities (multiples of 100) for quantities of 100 or more. Larger quantities are subject to NVE’s standard lead times.
