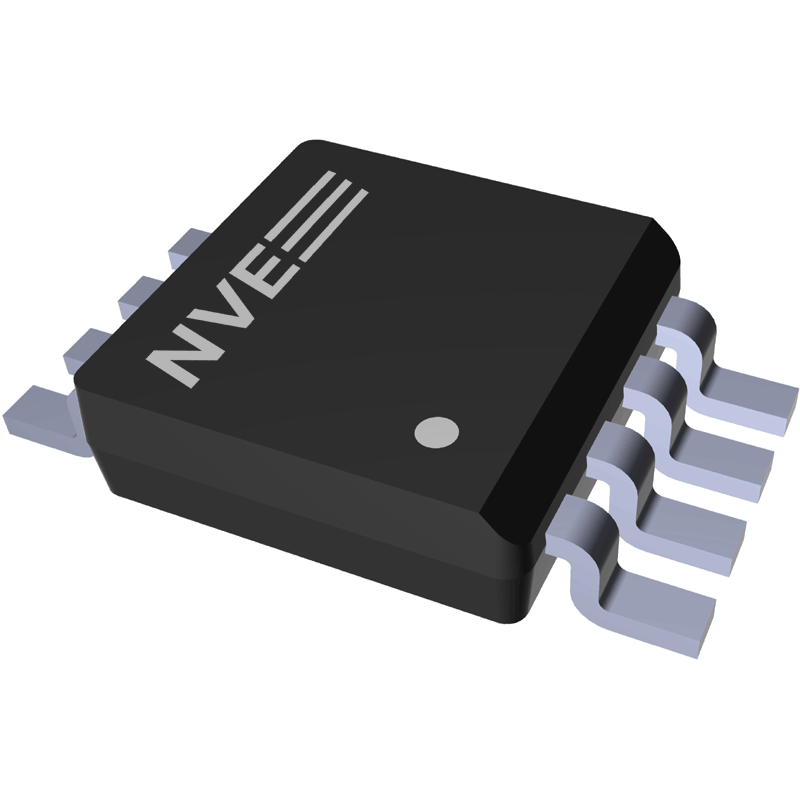

AD924-00E: 2.8 mT Digital Switch, MSOP

  • Part Number
  • AD924-00E
  • Magnetic Operate Point  (mT)
  • Magnetic Release Point  (mT)
  • Supply Current (mA)
  • Output Current (mA)
  • Max. Temperature (°C)

Description:

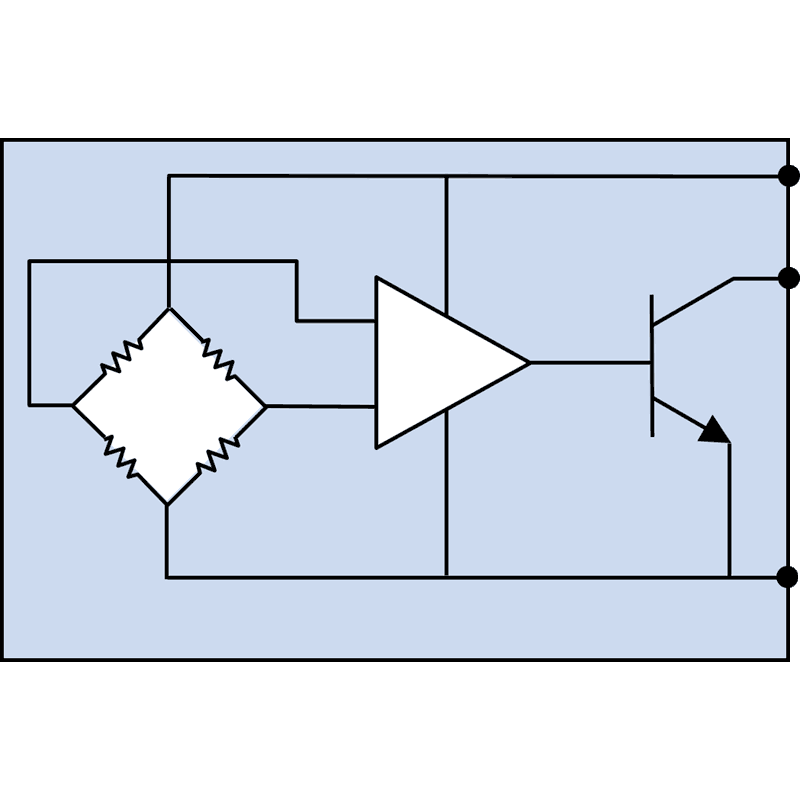

00E Sensors are for use with external high-current output transistors in industrial control environments. The parts provide the same precise magnetic performance as NVE GMR Digital Switches with the addition of output stage short circuit protection (SCP). The protection circuit shuts off the output stage if there is a short circuit, then turns it back on after a specified interval. The sensor, combined with external reverse battery and overvoltage protection, results in a "bulletproof" assembly.

Features:

  • Precision Magnetic Operate Point -- 28 Gauss
  • Excellent Temperature and Voltage Performance
  • Digital Outputs
  • Frequency Response 0 to 250 KHz
  • Small, Low Profile Surface Mount Packages

Applications:

  • General Digital Field Sensing
  • Pneumatic Cylinder Position Sensing
  • Speed Sensing


Note: Parts must be purchased in tube quantities (multiples of 100) for quantities of 100 or more. Larger quantities are subject to NVE standard lead times.



$5.63
1 - 9 $5.63
10 - 99 $3.68
100 - 499 $2.93
500 + $2.49
4679 in stock
