AD020-00E: 2.8 mT Digital Switch, MSOP

  • Part Number
  • AD020-00E
  • Magnetic Operate Point  (mT)
  • Magnetic Release Point  (mT)
  • Supply Current (mA)
  • Output Current (mA)
  • Max. Temperature (°C)

Description:

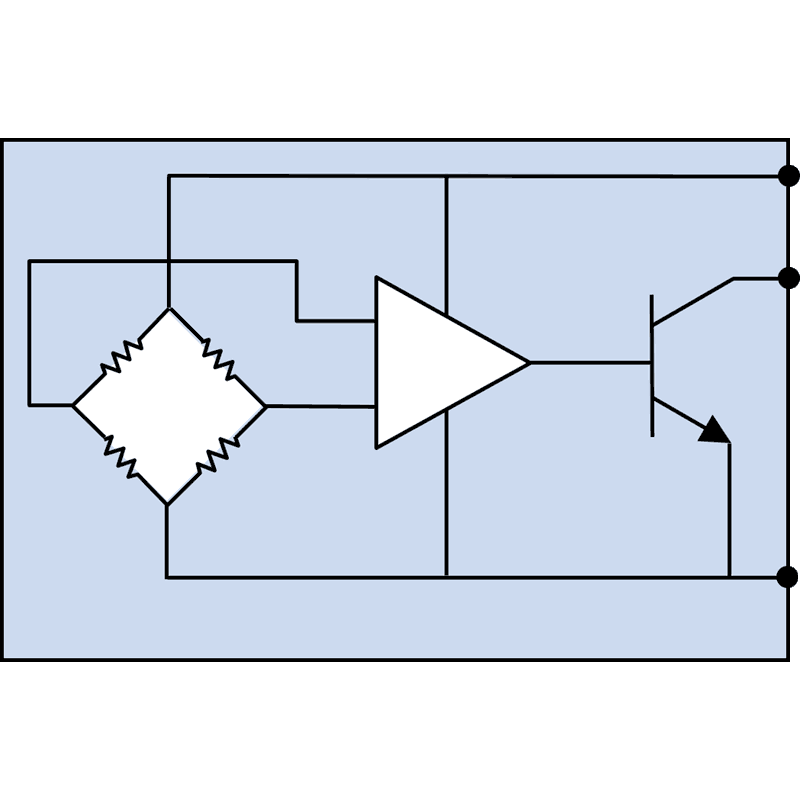

AD020-00 GMR Switch integrates GMR sensor elements with digital onboard signal processing electronics. The GMR Switch has less field sensing errors than other magnetic sensors, and magnetic field operate points are stable over voltage and temperature extremes. This enables high precision, tight-tolerance magnetic sensing assemblies.

Features:

  • Precision Magnetic Operate Point --28 Oersteds
  • Excellent Temperature and Voltage Performance
  • Digital Outputs
  • Frequency Response 0 to 250 KHz
  • Small, Low Profile Surface Mount Packages

Applications:

  • General Digital Field Sensing
  • Pneumatic Cylinder Position Sensing
  • Speed Sensing



Note: Parts must be purchased in tube quantities (multiples of 100) for quantities of 100 or more. Larger quantities are subject to NVE standard lead times.



$4.89
1 - 9 $4.89
10 - 99 $3.21
100 - 499 $2.51
500 + $1.96
33 in stock
