ABT500-00E: TMR 2 mm Pitch Gear Tooth Sensor, MSOP

  • Part Number
  • ABT500-00E
  • Element Spacing (mm)
  • Bridge Resistance (kΩ)
  • Max. Temperature (°C)

Description:

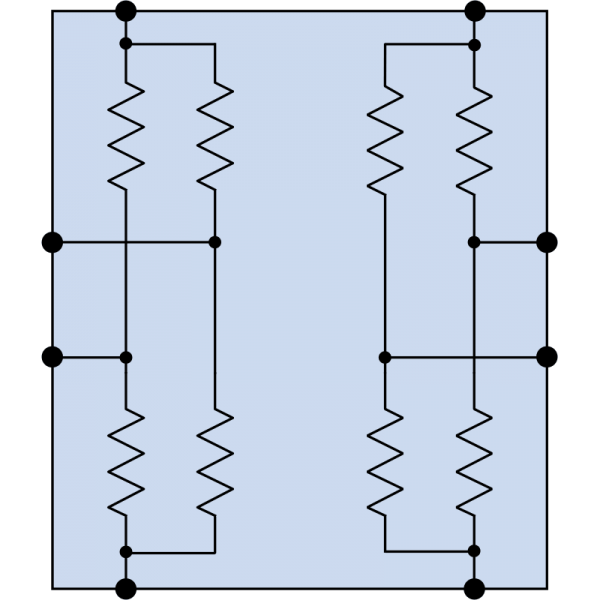

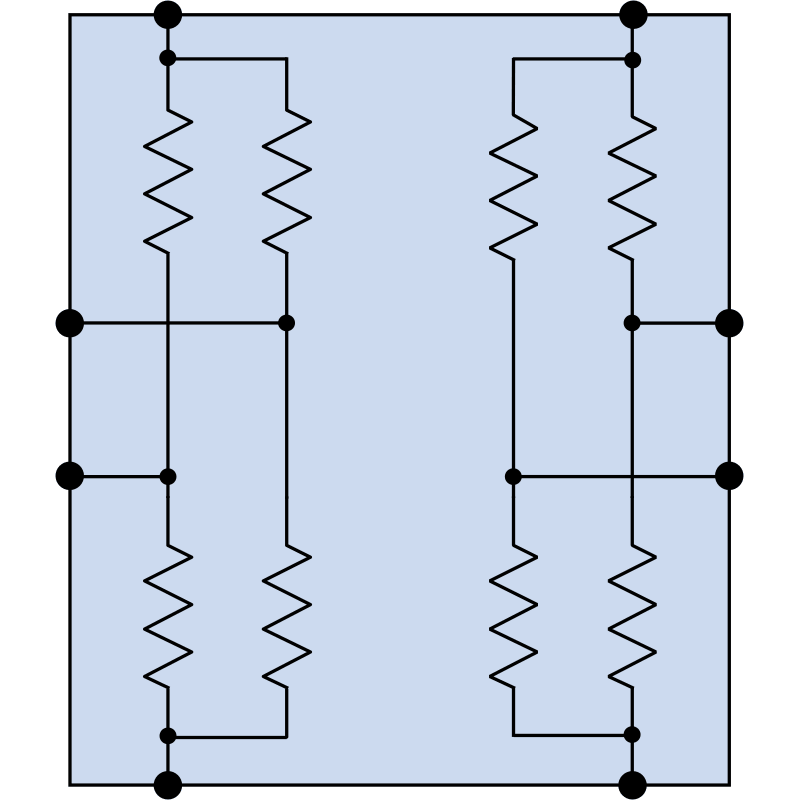

ABT500-00E gear-tooth sensors are typically used with back-biasing magnets to encode the position of a ferrous gear.

The ABT500-00E is optimized for 2 mm pitch gears, and can be used for pitches from 1.3 to 4 mm. The sensors have two channels to detect direction.

Key features include:
   • 0.001° resolution
   • Large analog peak-to-peak signals
   • Operating frequency to 350 kHz
   • 150 °C operating temperature
$5.71
1 - 9 $5.71
10 - 99 $4.39
100 - 499 $3.07
500 + $2.19
99999 in stock
Notify me when in stock
