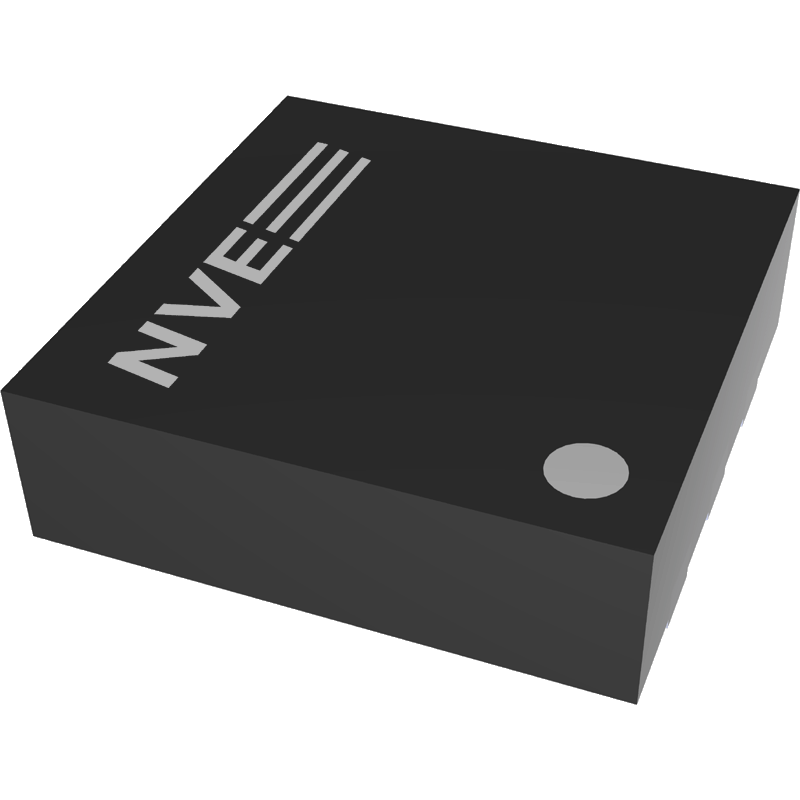

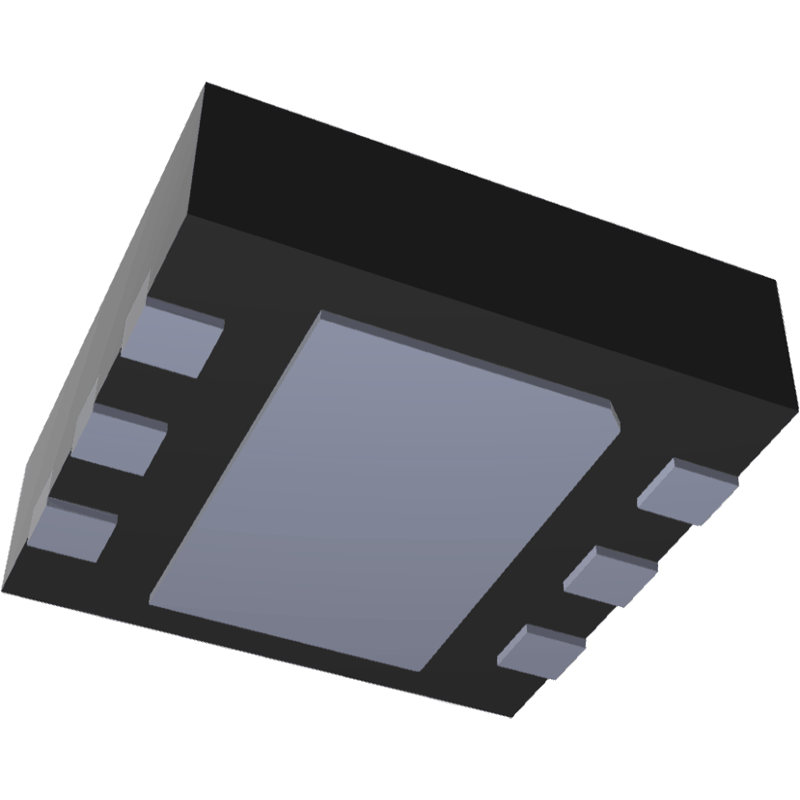

AAT003-10E: Angle Sensor, 40 kOhm, DFN6

  • Part Number
  • AAT003-10E
  • Magnetic Field Operating Range (mT)
  • Supply Current @ 3.3 V (µA)
  • Bridge Resistance (kΩ)
  • Max. Temperature (°C)

Description:

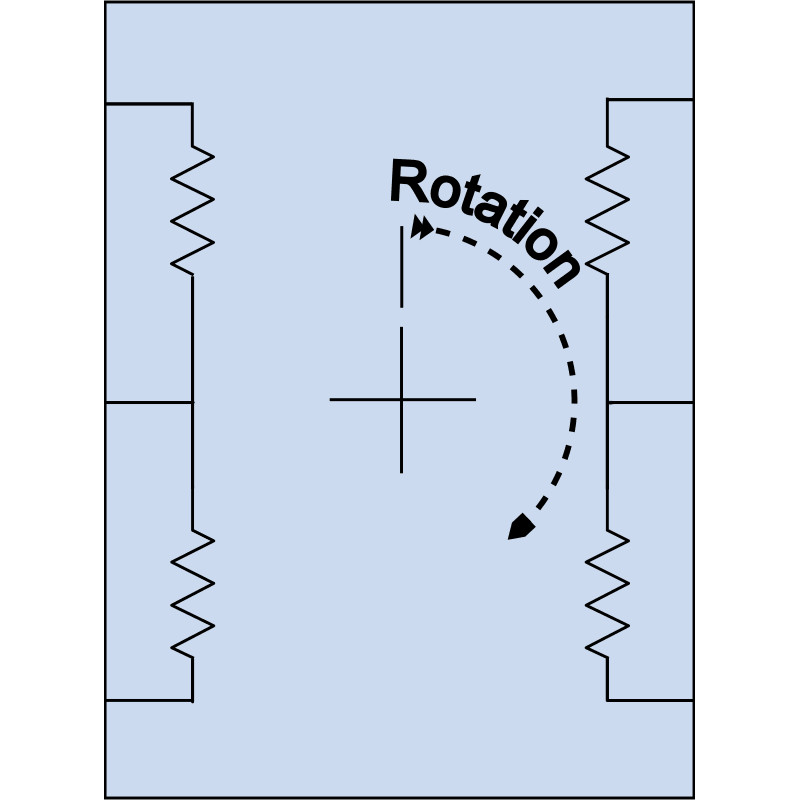

-10E Angle Sensors use Tunneling Magnetoresistance (TMR) technology to produce a very high output signal without amplification, a wide airgap tolerance, and low power. Sine and cosine outputs provide full quadrature. The sensor has a 40 kilohm device resistance and 20 kilohm output impedance, which is ideal for direct interface to microcontrollers.


The angle sensors are typically used with a split pole magnets such as NVE part no. 12249 or 12426.



An Evaluation Kit is available with an angle sensor, circuit board, unity-gain buffer amplifier, split-pole magnet, and a plastic magnet locating fixture.

$8.94
1 - 9 $8.94
10 - 99 $6.75
100 - 499 $4.85
500 + $3.42
4172 in stock
