AAK001-14E: 400 mT Sat. High-Field Magnetometer, 3.5 KOhm, DFN4

  • Part Number
  • AAK001-14E
  • Min. Detectable Field (µT)
  • Bridge Resistance (kΩ)
  • Max. Temperature (°C)

Description:

The AAK001-14E is a high-field GMR magnetic sensor that provides precise sensing of magnetic fields up to 4 kOe (400 mT).

Features:

  • Precise sensing of magnetic fields up to 4 kOe (400 mT)
  • Sensitive to fields of any direction in the IC plane

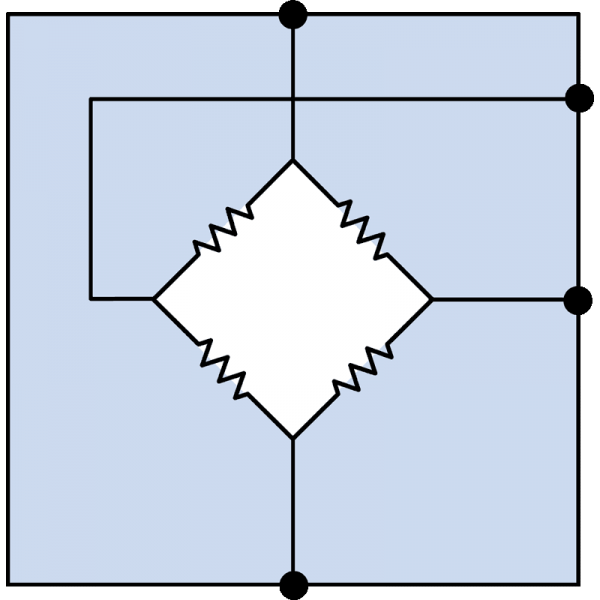

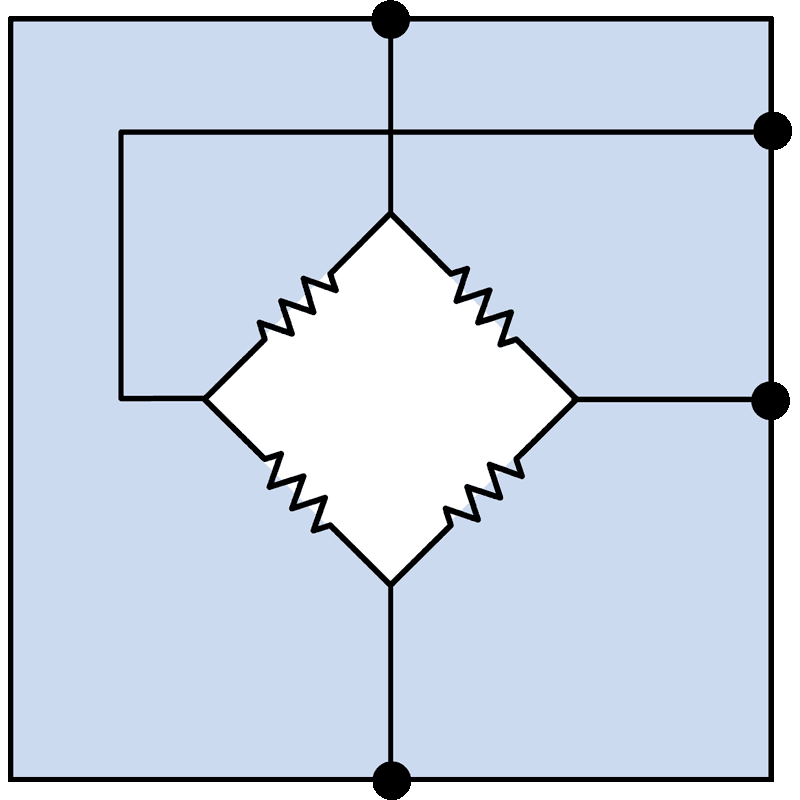

  • Ratiometric Wheatstone bridge outputs
  • Any operating supply voltage up to 12V

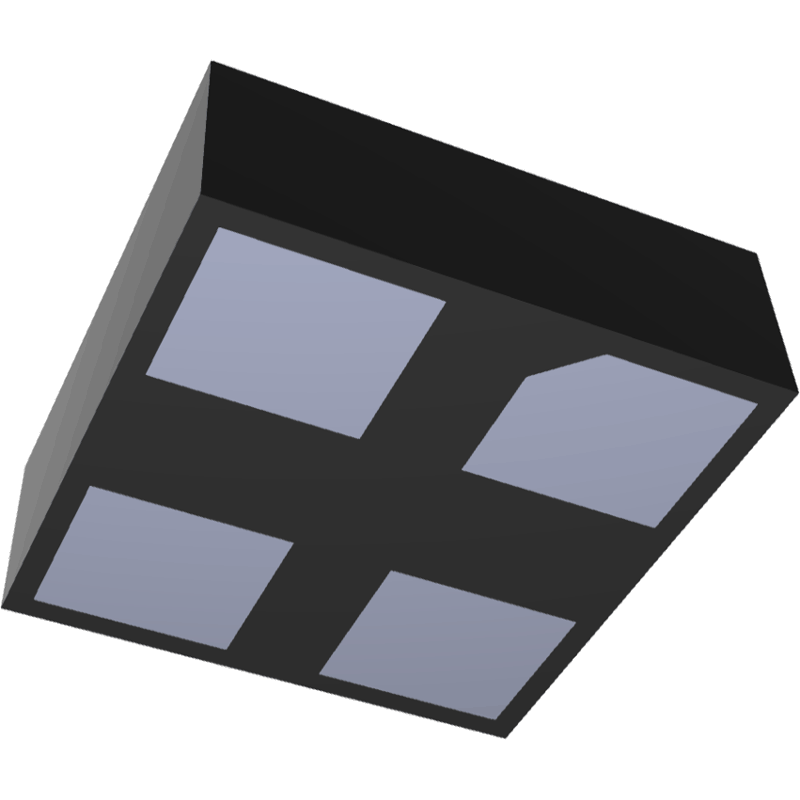

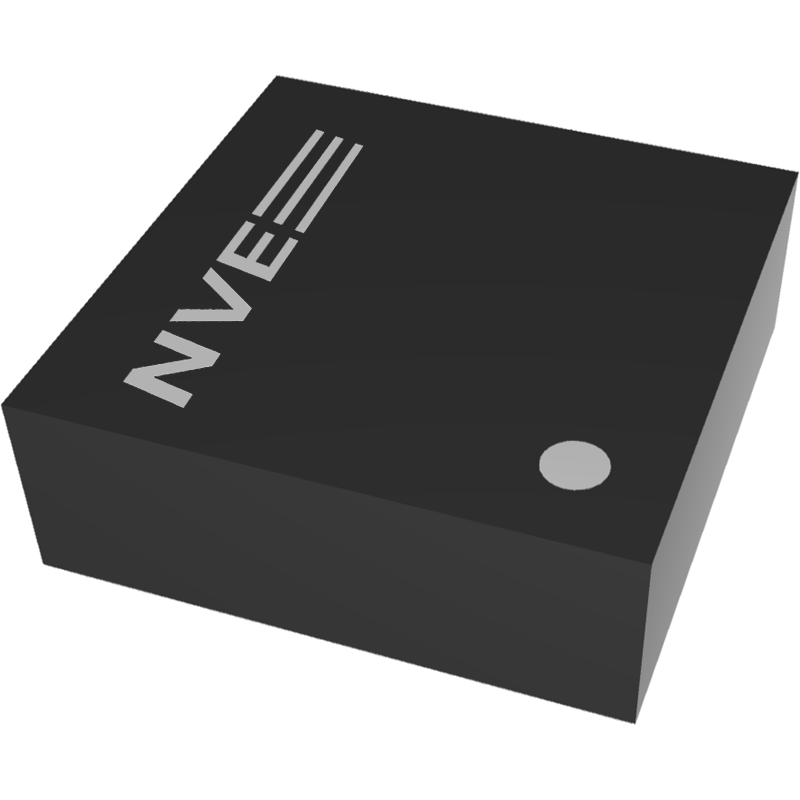

  • Ultraminiature 1.1 x 1.1 mm package

Applications:

  • Brushless DC motors
  • Motor commutator sensors
  • Noncontact high-current measurement
  • Harsh industrial applications

Note: Parts are sold in increments of 100 for quantities of 100 or more.
This part is RoHS compliant.

$17.05
1 - 9 $17.05
10 - 99 $15.79
100 - 499 $14.03
500 + $14.03
145 in stock
