AAH004-00E: 1.5 mT Sat. Analog Sensor, 2 KOhm, MSOP, 150C

  • Part Number
  • AAH004-00E
  • Sensitivity (mV/V/mT)
  • Bridge Resistance (kΩ)
  • Max. Temperature (°C)

Description:

AAH004-00E Normalized Output GMR Field Sensors use a unique high-sensitivity GMR material, making them ideal for low-field applications. They also tolerate extremely high temperatures--up to 150 degrees Celsius.

Features:

  • Extremely High Sensitivity to Applied Magnetic Fields

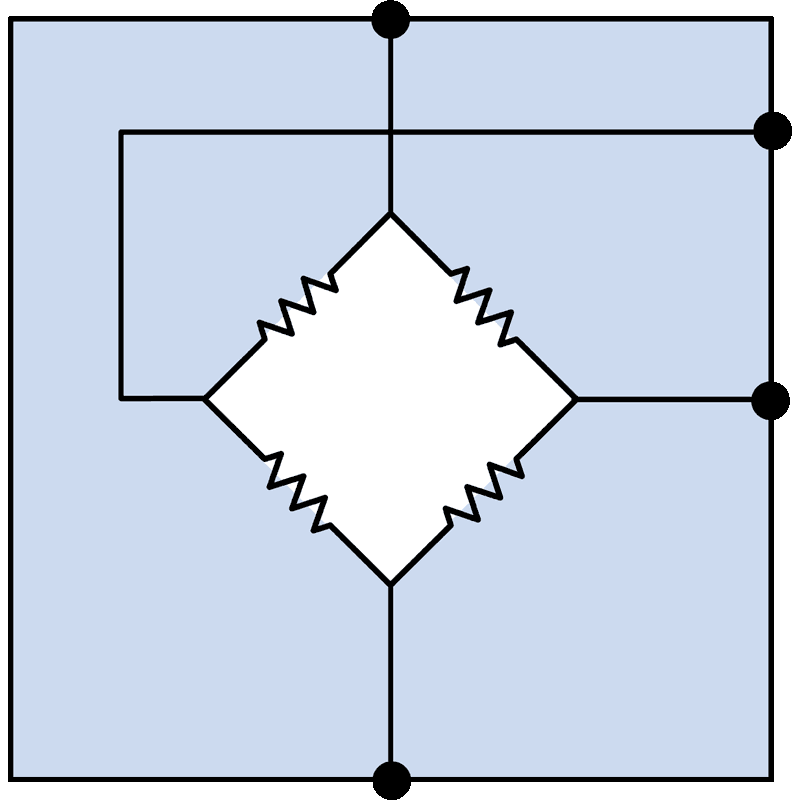

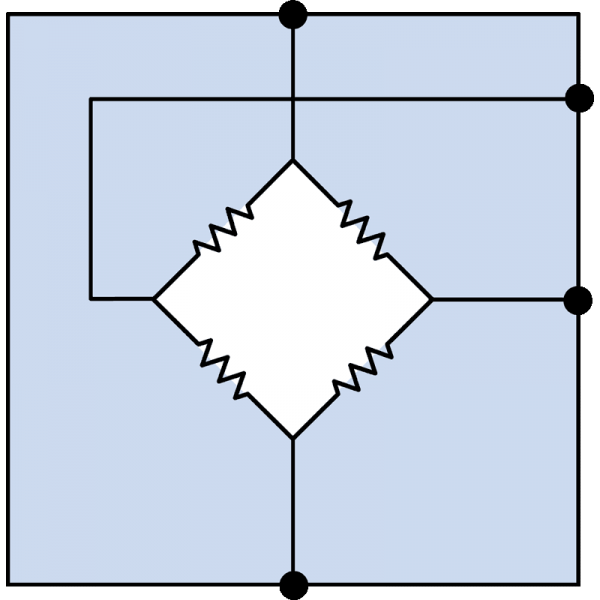

  • Wheatstone Bridge Analog Output
  • 150 Degrees Celsius Continuous
  • DC to >1MHz Frequency Response

Applications:

  • Low Voltage, High Temperature Applications
  • Low-Field Sensing for Magnetic Media Detection
  • Earth Magnetic Field Detection
  • Current Sensing



Note: Parts must be purchased in tube quantities (multiples of 100) when purchasing quantities of 100 or more. Larger quantities are subject to NVE standard lead times.

This part is RoHS compliant.

$9.60
1 - 9 $9.60
10 - 99 $7.85
100 - 499 $6.35
500 + $5.56
5143 in stock
