AA005-02E: 10 mT Sat. Analog Sensor, 5 KOhm, SOIC

The Amazing Temperature Stability of GMR Sensors

AA005-02E: 10 mT Sat. Analog Sensor, 5 KOhm, SOIC

Part Number
AA005-02E

Technology
GMR

Magnetic Polarity
Omnipolar

Field Measurement Range (mT)
1 to 7

Sensitivity (mV/V/mT)
5.5

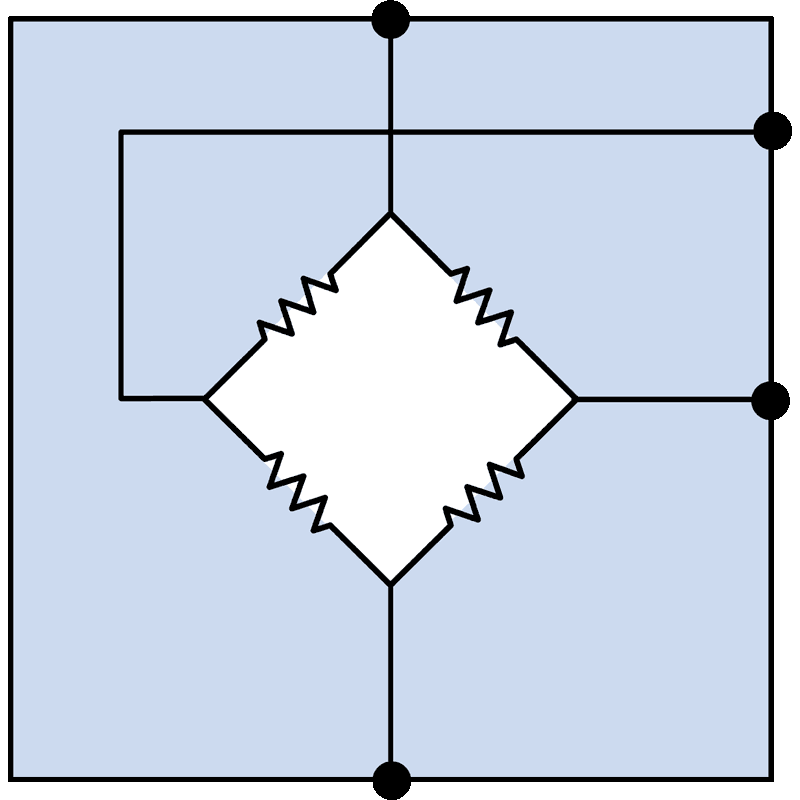

Output
Bridge

Direction of Sensitivity
Standard

Supply Voltage (V)
0 to 24

Bridge Resistance (kΩ)
5

Max. Temperature (°C)
125

Output Tempco (%/°C)
0.05

Package
SOIC8

Description:

AA-Series GMR Magnetic Field Sensors have high magnetic sensitivity and exceptional temperature stability.

Note: Parts must be purchased in tube quantities (multiples of 92) when purchasing quantities of 92 or more. Larger quantities are subject to NVE’s standard lead times.

1 - 9 $9.60

10 - 99 $7.85

100 - 499 $6.35

500 + $5.56

Qty:

3296 in stock

$9.60
