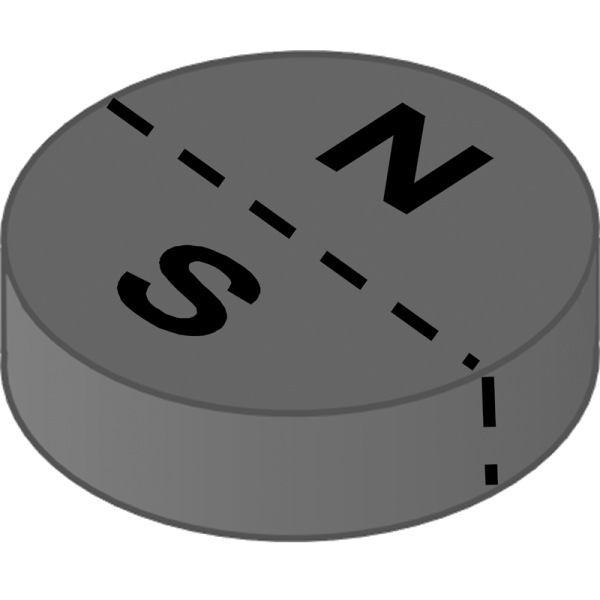

12528: 8 mm Dia. x 8 mm Thick Diametrically-Magnetized Magnet
12528: 8 mm Dia. x 8 mm Thick Diametrically-Magnetized Magnet
Part Number
12528
Magnet Size
8 mm Dia. x 8 mm
Magnet Material
Ferrite
Magnetization
Radial
Data Sheet
(.pdf)
Description:
The 12528 is diametrically-magnetized for use with angle and rotation sensors. The magnet material is C5/Y25 ferrite or similar.
Can be used with
12545 magnet holders
.
$
1.19
Qty:
903 in stock
Add to Cart
In your cart
Add to Cart
Notify me when in stock
