12426: Split-Pole Round Horseshoe Magnet

  • Part Number
  • 12426

Description:

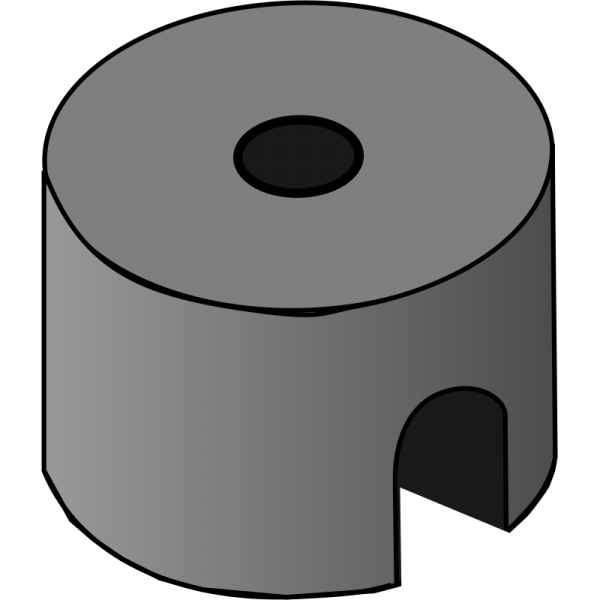

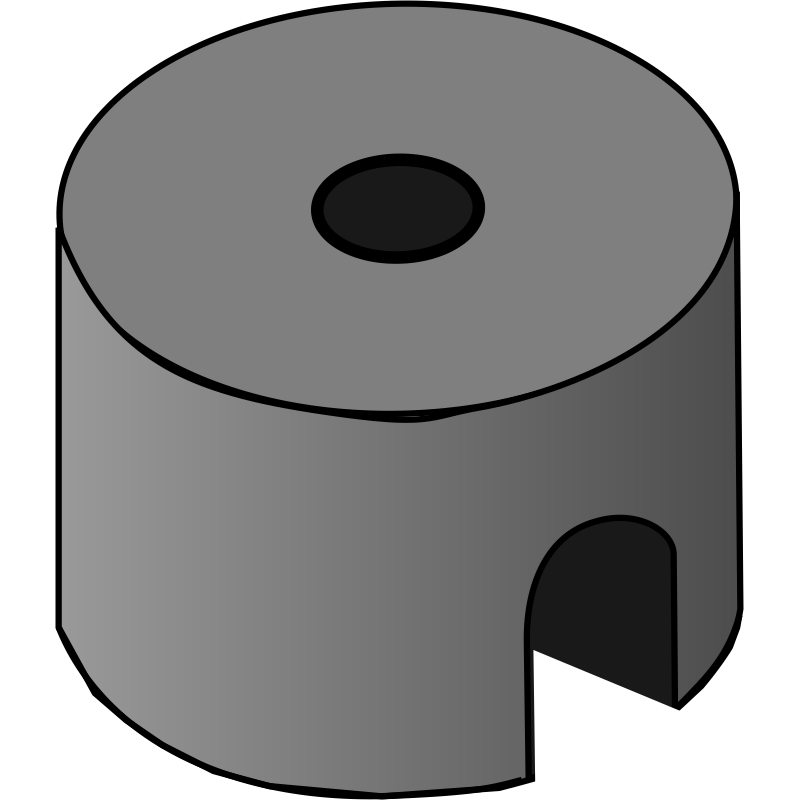

The 12426 is a split-pole Alnico-5 round horseshoe magnet, ideal for use with AAT-Series angle sensors.

The magnet is 11 mm diameter by 11 mm tall, with a 3.7 mm hole through the center for a variety of mounting options.


Typical field strength is 1100 Oe at the magnet face and thirty oersteds 12mm away. This magnet strength allows a large airgap between the magnet and the sensor.

This magnet is included in our angle sensor evaluation kits.
$8.95
626 in stock
