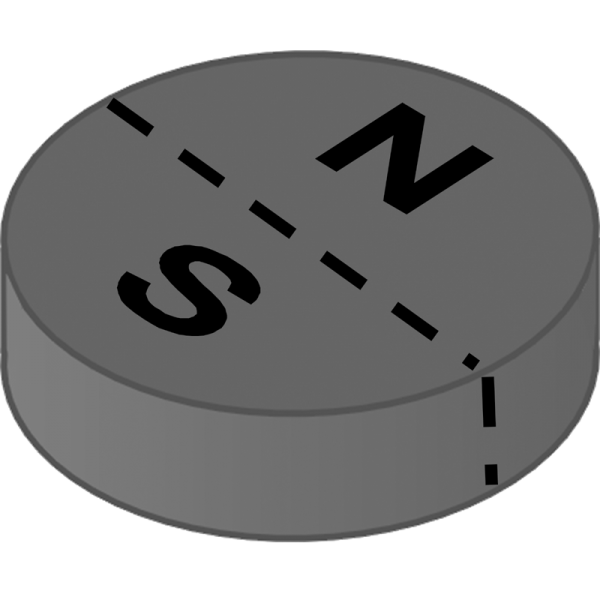

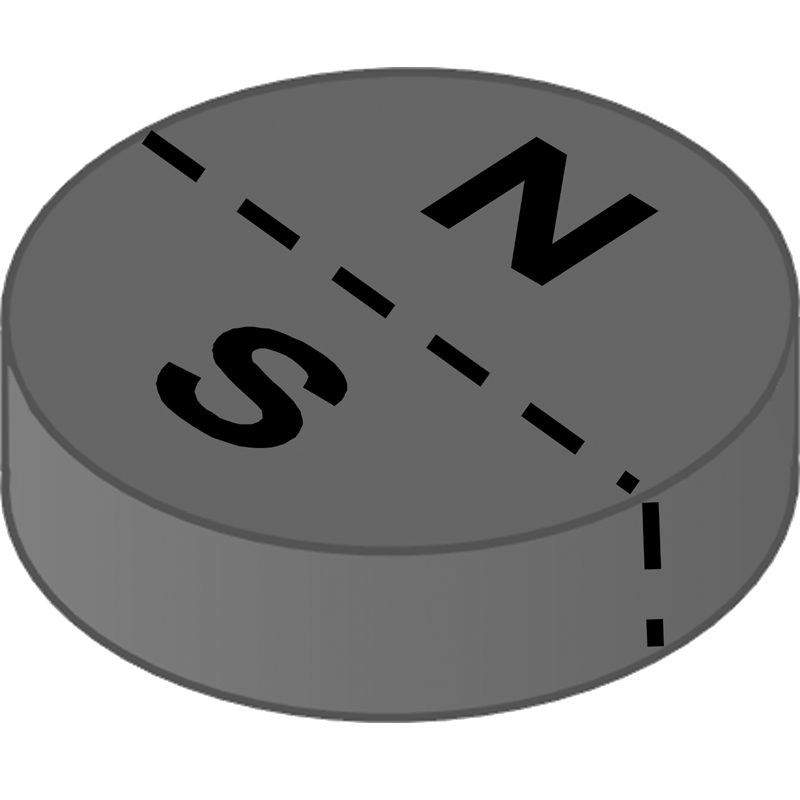

12249: 12.5 mm Dia. x 3.5 mm Diametrically-Magnetized Disk Magnet
12249: 12.5 mm Dia. x 3.5 mm Diametrically-Magnetized Disk Magnet
Part Number
12249
Magnet Size
12.5 mm Dia. x 3.5 mm
Magnet Material
Ferrite
Magnetization
Radial
Electronic Data Automation
(External Link)
Data Sheet
(.pdf)
Description:
A diametrically-magnetized for use with AAT- and ADT-Series angle sensors. The magnet material is C5/Y25 ferrite or similar.
Typical field strength is 1000 Oe at the magnet face.
$
2.85
Qty:
1473 in stock
Add to Cart
In your cart
Add to Cart
Notify me when in stock
