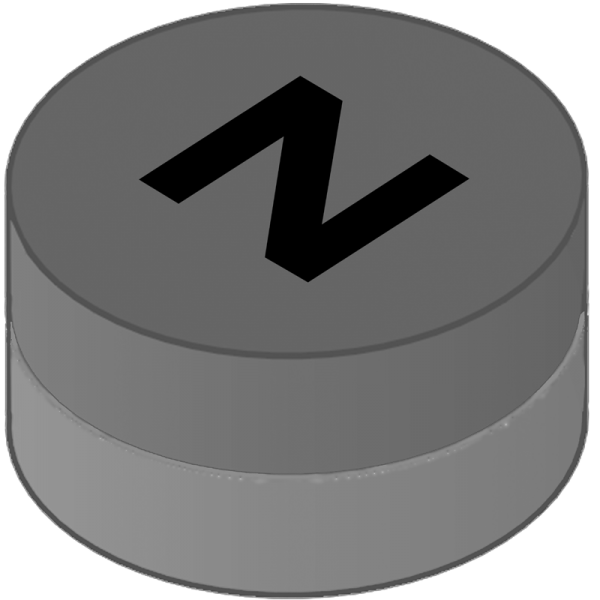

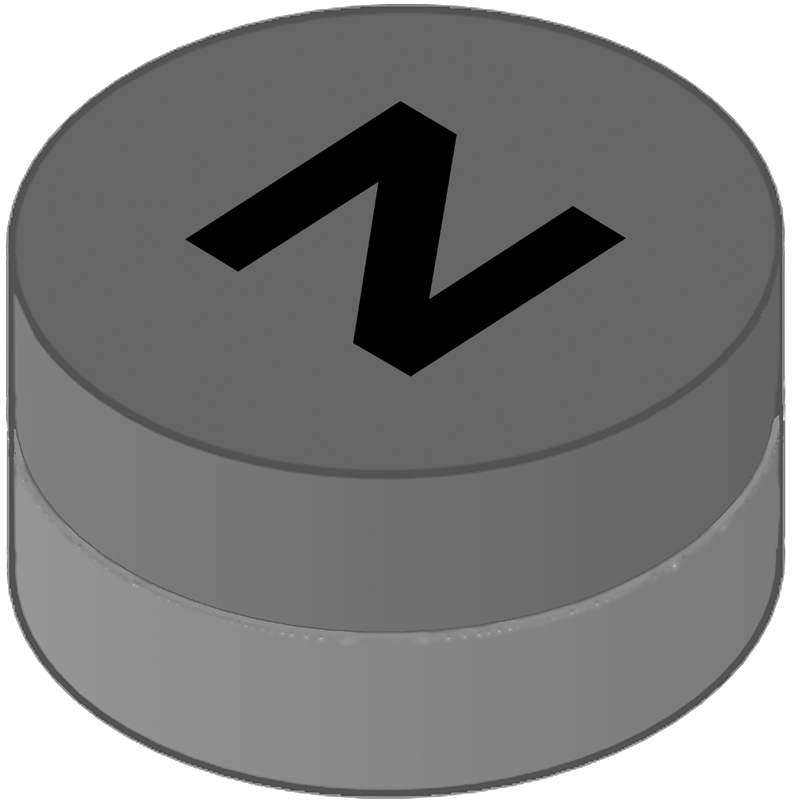

12216: 6 mm Dia. x 4 mm Thick Disk Magnet
12216: 6 mm Dia. x 4 mm Thick Disk Magnet
Part Number
12216
Magnet Size
6 mm Dia. x 4 mm
Magnet Material
Ferrite
Magnetization
Axial
Data Sheet
(.pdf)
Description:
The 12216 magnet is a round, Y25 ferrite, 6 mm dia. x 4 mm thick disk magnet. Typical field strength is 1100 Oe at the magnet face.
This magnet is also included in the
AG920-07 Gear Tooth Sensor Evaluation Kit
.
$
0.99
Qty:
1346 in stock
Add to Cart
In your cart
Add to Cart
Notify me when in stock
