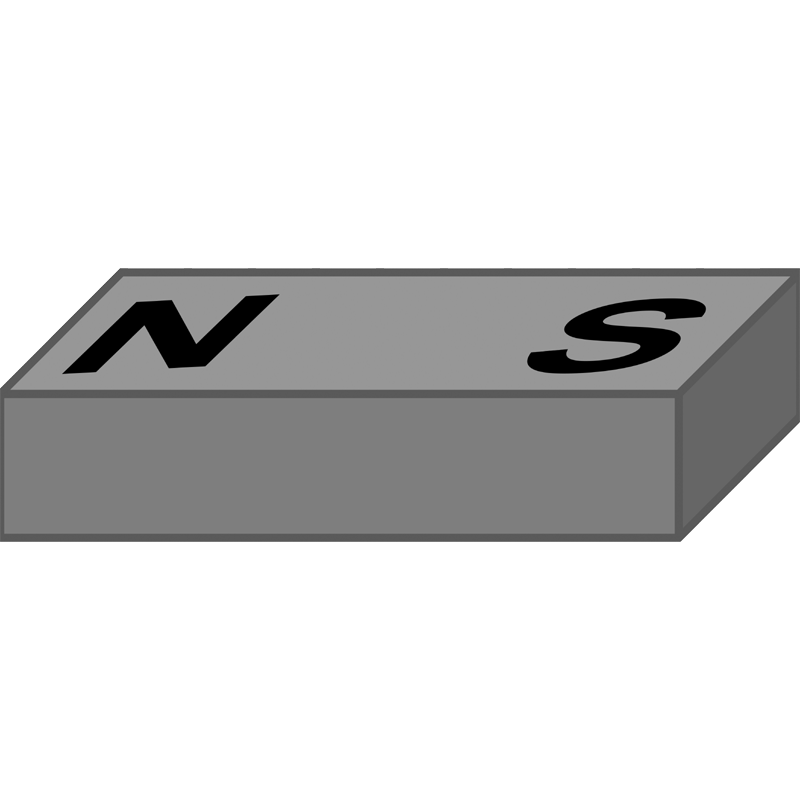

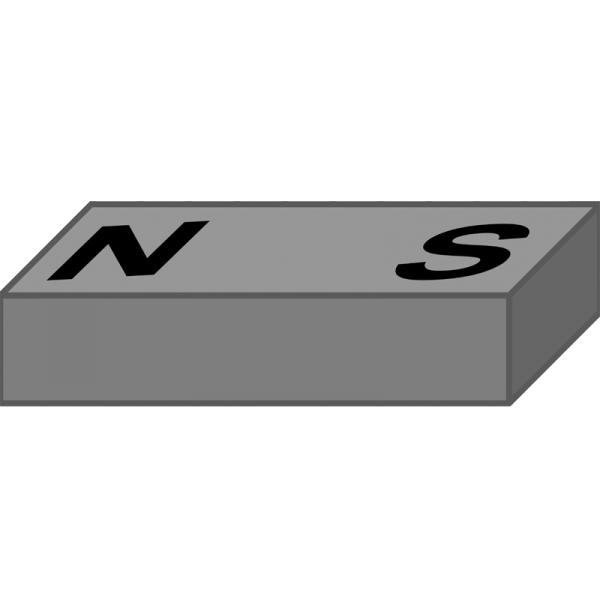

12032: 1.0" x 0.125" x 0.39" Bar Magnet
12032: 1.0" x 0.125" x 0.39" Bar Magnet
Part Number
12032
Magnet Size
1.0" x 0.125" x 0.39"
Magnet Material
Ferrite
Magnetization
Axial
Electronic Data Automation
(External Link)
Data Sheet
(.pdf)
Description:
The 12032 is a 1.0" long x 0.125" wide x 0.39" thick Y25 ferrite bar magnet. Typical field strength is 1800 Oe at the magnet face.
This magnet is also included in the
AG910-07
and
AG911-07
GMR Switch Evaluation Kits.
$
4.25
Qty:
86 in stock
Add to Cart
In your cart
Add to Cart
Notify me when in stock
