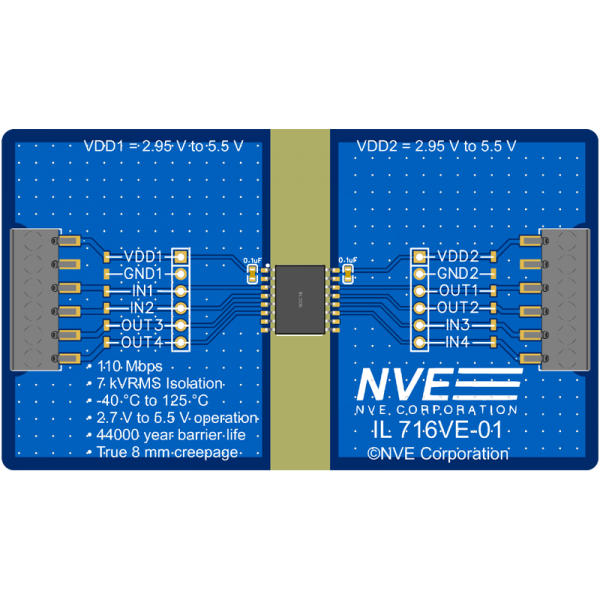

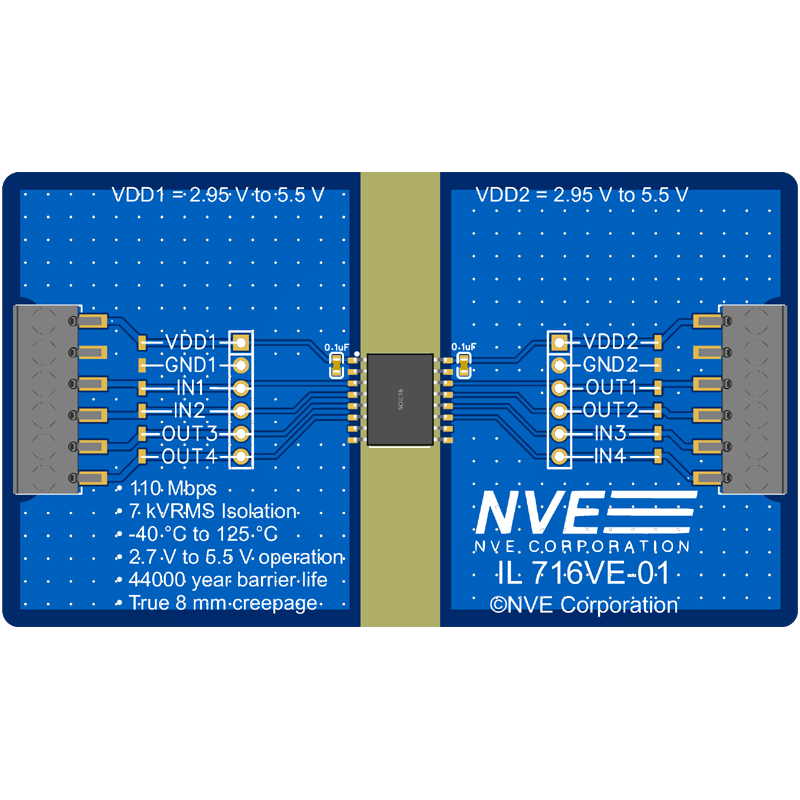

These 2 x 3.5-inch (50 x 90 mm) boards have an
IL716VE isolator, two bypass capacitors as recommended, screw connections, test pads, and provisions for header pins.
V-Series isolators are rated at a best-in-class 7 kVrms (9.9 kVpeak) isolation voltage. The evaluation board demonstrates best practice for maintaining 8 millimeter creepage. The isolators are conformally-coated to minimize arcing around the part.
