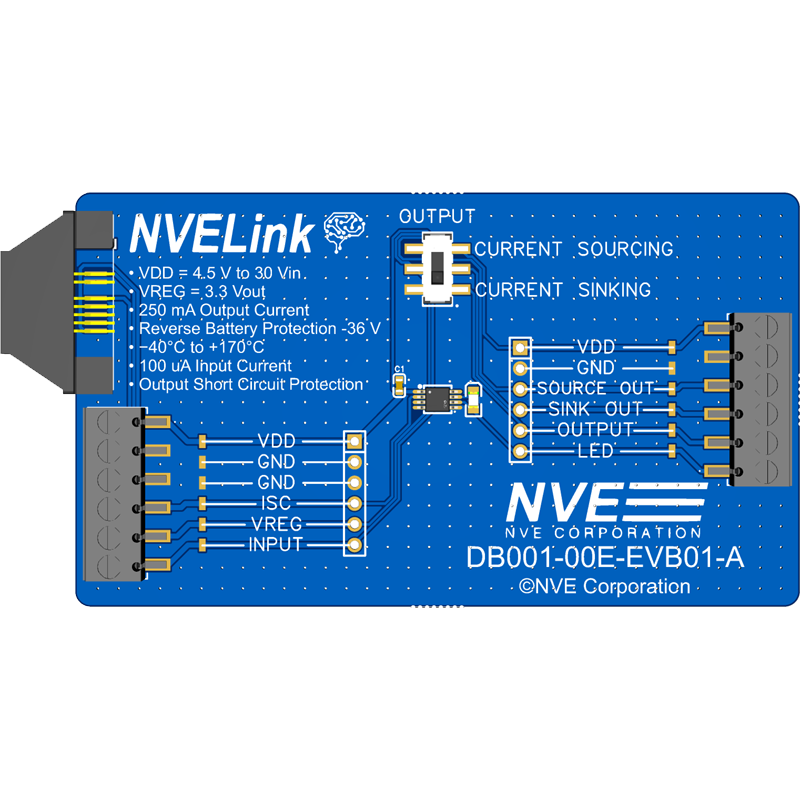

This evaluation board designed to work with an AD9xx series GMR switch board (sold seperately). This combination provides a high-current switched output that corresponds to the sensor input. The boards include recommended capacitors, an LED to show the output, and switches to select current sourcing or sinking.
The boards are 3.5" x 2" (89 mm x 51 mm). Connections are available through header pins and screw terminals.
