AG968-07E: SM228 15 mT I2C Smart TMR Magnetometer Breakout Board

I²C Magnetic Sensors

AG968-07E: SM228 15 mT I2C Smart TMR Magnetometer Breakout Board

Part Number
AG968-07E

Board Size (mm)
15 x 19

Connections
Header

Sensor Function
Magnetometer

Technology
TMR

Magnetic Polarity
Bipolar

Field Measurement Range (mT)
−15 to +15

Resolution (bits)
12

Magnetic Operate Point (mT)
Programmable

Output
I²C; Comparator

Sampling Speed (Sps)
15000

Supply Voltage (V)
2.2 to 3.6

Max. Temperature (°C)
125

Package
2.5 x 2.5 mm DFN6

IC Included?
Yes

Description:

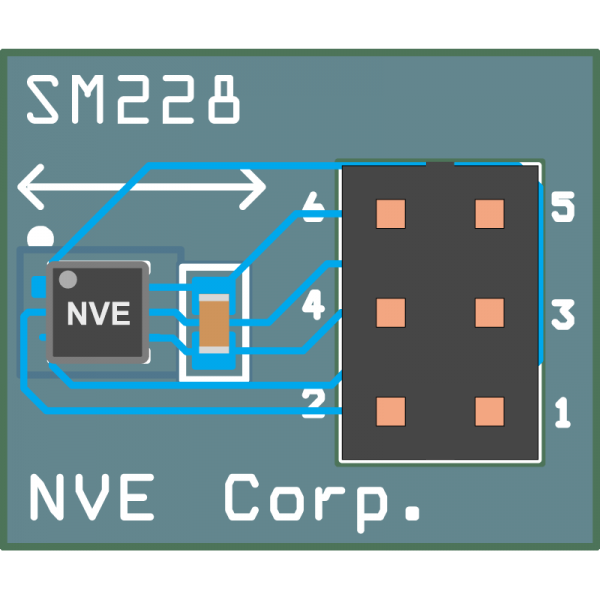

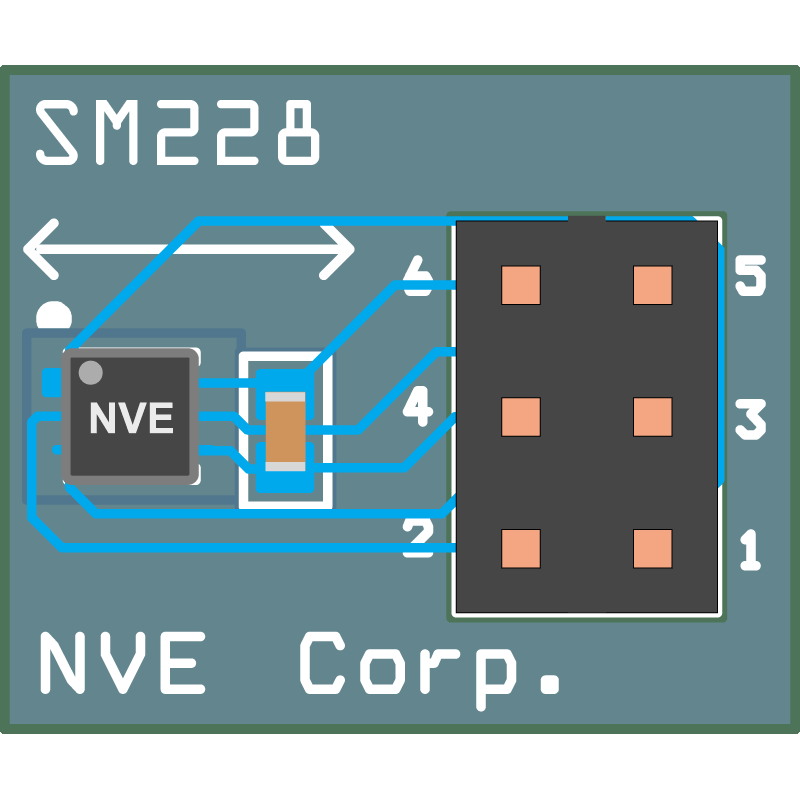

The AG968-07E provides easy connections to an SM228-10E Smart Magnetometer. In addition to the sensor, the board has a recommended bypass capacitor and a six-pin header connected to each of the sensor I/O pads. The board is approximately 0.6 by 0.75 inches (15 x 19 mm).

Qty:

0 in stock

$19.95

Notify me when in stock
