AG957-06E: Bare breakout board for ASR0xx Smart Angle Sensors

  • Part Number
  • AG957-06E
  • Resolution (bits)
  • Supply Current @ 3.3 V (µA)
  • Max. Temperature (°C)

Description:

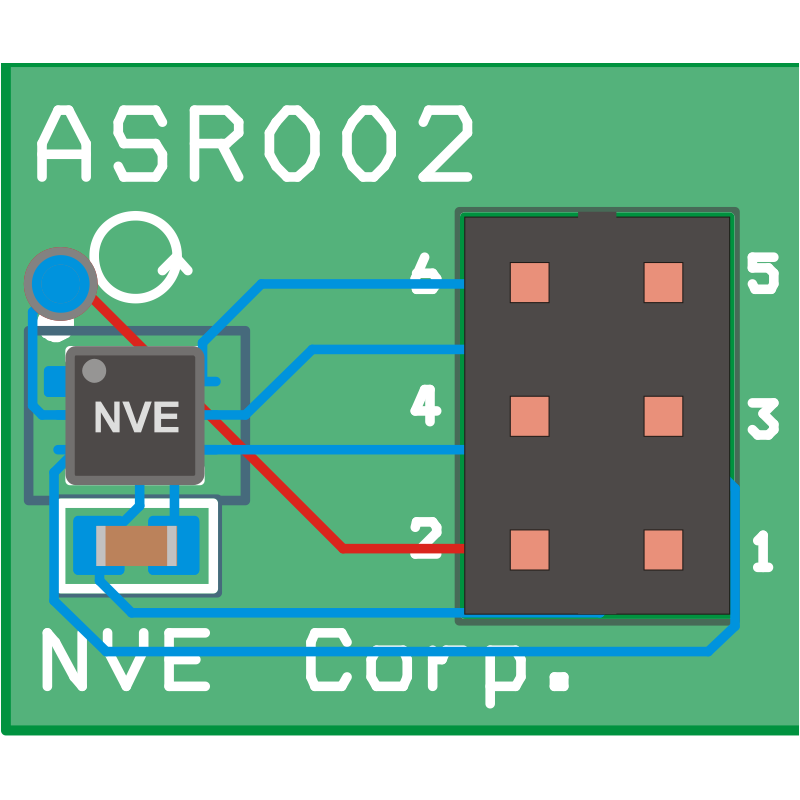

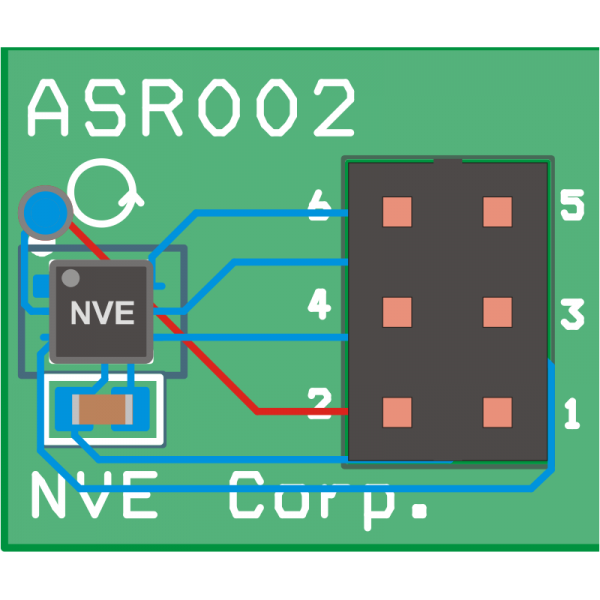

The AG957-06E provides easy connections to an ASR-Series Smart Angle Sensor (sensors sold separately). In addition a spot for the sensor, the board has a spot for a bypass capacitor and a header to connected to the sensor I/O pads. The board is approximately 0.5 by 0.6 inches (12 x 15 mm).
11 in stock
$2.25
