ADL924-20E: 2.8 mT, 3V Nanopower GMR Switch, WLCSP

  • Part Number
  • ADL924-20E
  • Magnetic Operate Point  (mT)
  • 2.8
  • Magnetic Release Point  (mT)
  • 2
  • Supply Current @3 V (µA)
  • 60
  • Output Current (mA)
  • 0.1
  • Max. Temperature (°C)
  • 125
Data Sheet (.pdf)
Package Outline (.pdf)
3D (.step)
(External Link)
×
×
Model for 0.65-x-0.65-mm-WLCSP

Description:

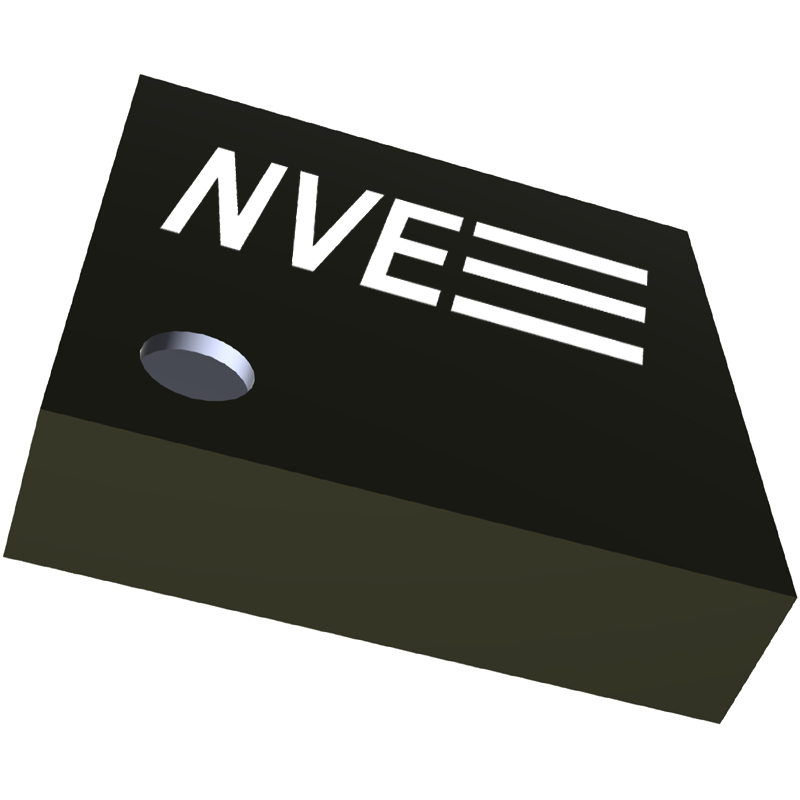

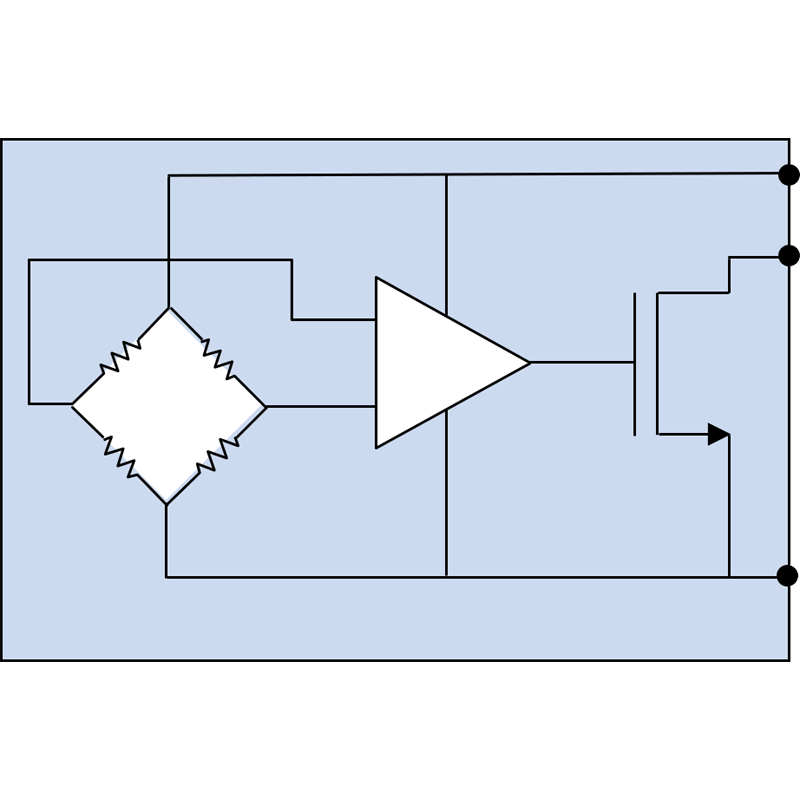

NVE's ADL924-20E Nanopower Switch integrates GMR sensor elements with digital onboard signal processing in a Wafer-Level Chip-Scale Package.

Features:

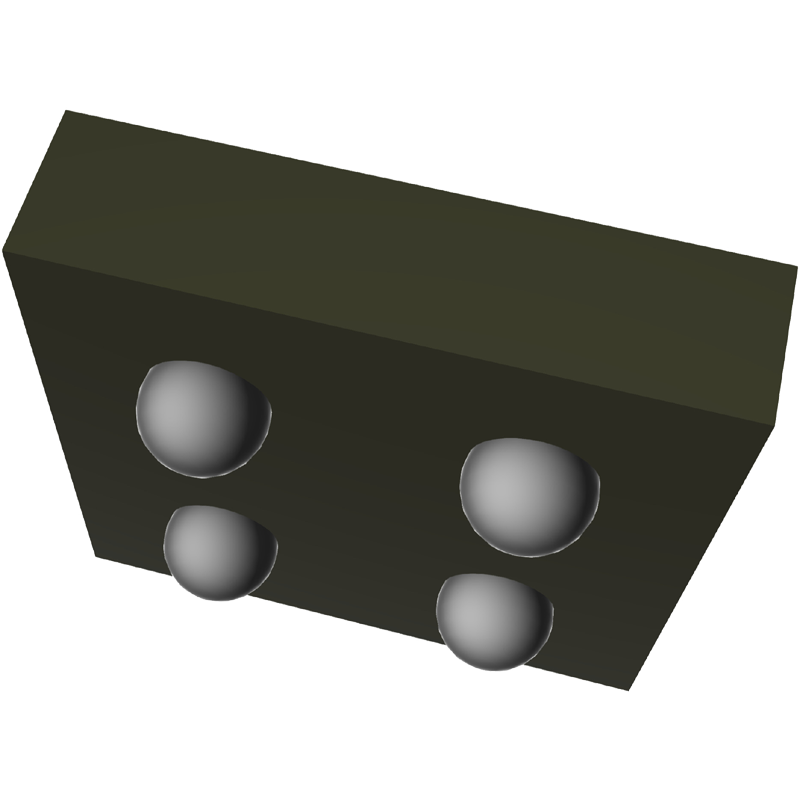

  • Ultraminiature 0.65 mm x 0.65 mm WLCS package
  • 2.4 to 4.2 V
  • Typical Power Consumption 84 microwatts at 2.4 V without duty-cycling
  • 250 kHz Operating Frequency
  • Digital Switch Output

Applications:

  • Proximity switches
  • Small mechanisms
1 - 9 $5.63
10 - 99 $3.68
100 - 499 $2.93
500 + $2.49
50 in stock
$5.63
