ADL125-20E: 1 mT, 3V, 30 Hz Duty-Cycled GMR Switch, WLCSP

ADL125-20E: 1 mT, 3V, 30 Hz Duty-Cycled GMR Switch, WLCSP

Part Number
ADL125-20E

Technology
GMR

Magnetic Polarity
Omnipolar

Magnetic Operate Point (mT)
1

Magnetic Release Point (mT)
0.7

Duty Cycling
Duty Cycled

Output
Sink

Direction of Sensitivity
Standard

Supply Voltage (V)
2.4 to 4.2

Supply Current @3 V (µA)
0.08

Output Current (mA)
0.1

Max. Temperature (°C)
125

Package

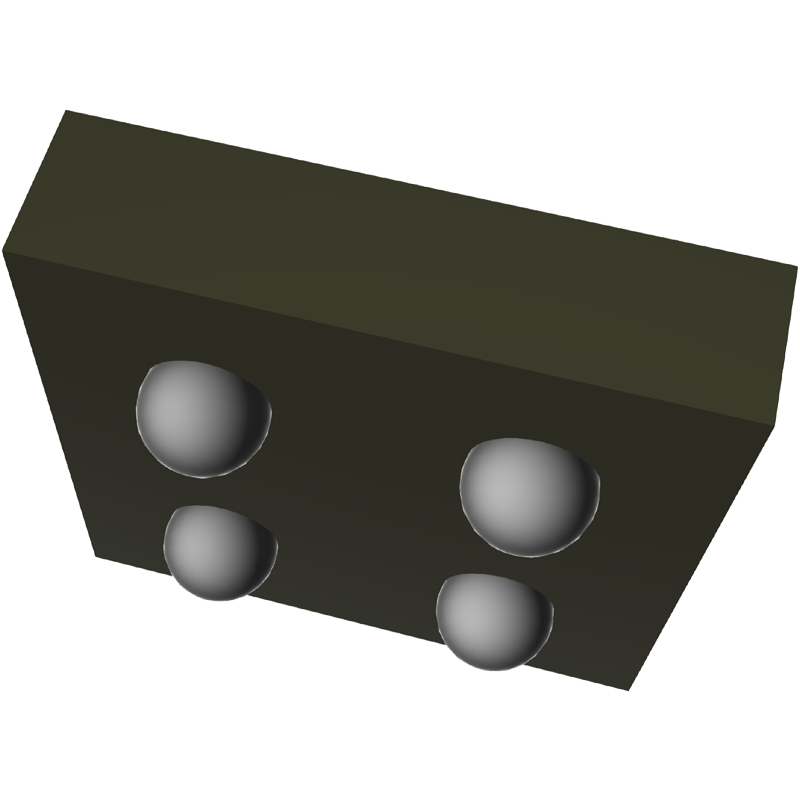

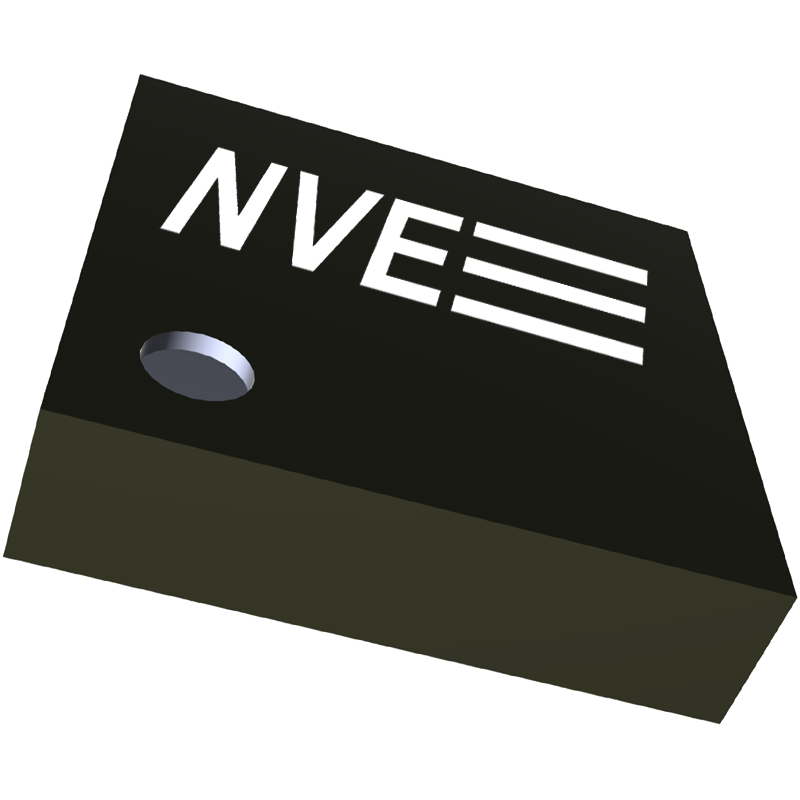

0.65 x 0.65 mm WLCSP

Description:

NVE's ADL125-20E Ultrasensitive Nanopower Switch integrates GMR sensor elements with digital onboard signal processing and duty-cycling electronics in a Wafer-Level Chip-Scale Package.

Features:

Ultrasensitive 1 mT operate point
Ultraminiature 0.65 mm x 0.65 mm WLCS package
2.4 to 4.2 V
Typical Power Consumption 72 nW at 2.4 V
30 Hz Typical Update Frequency
Digital Switch Output
Integrated Duty-Cycling

Applications:

Battery-Powered Devices
Portable Instruments

1 - 9 $6.19

10 - 99 $4.04

100 - 499 $3.22

500 + $2.74

Qty:

0 in stock

$6.19

Notify me when in stock
