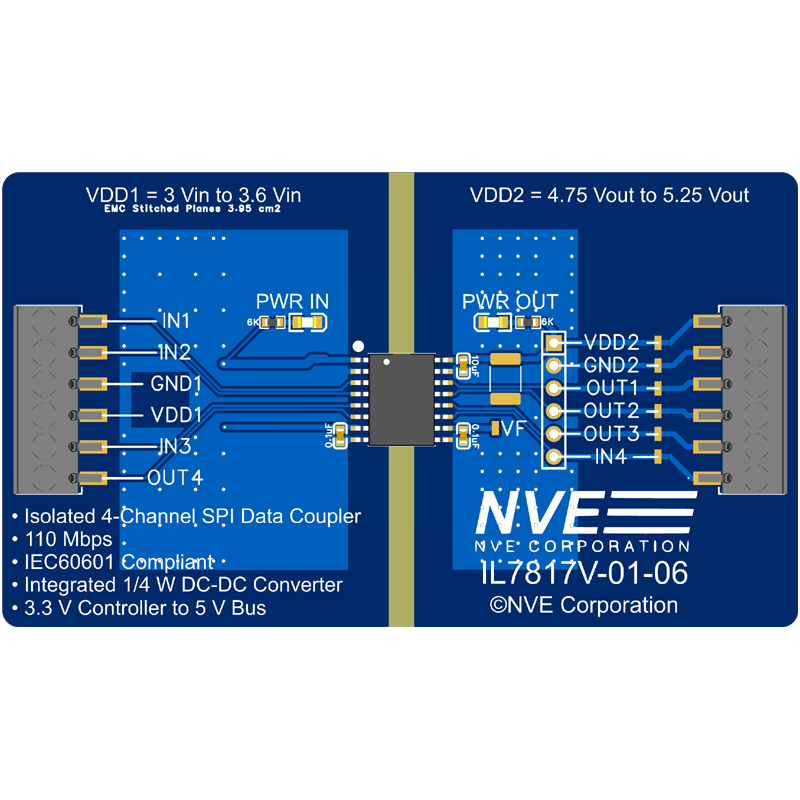

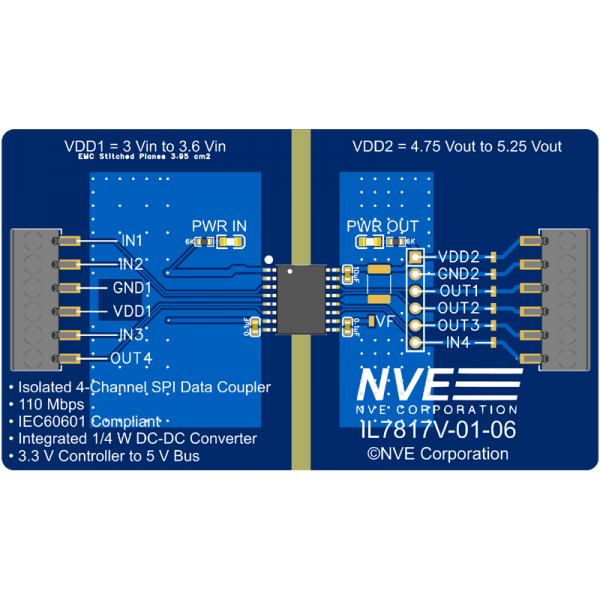

This Evaluation Board provides a complete isolated four-channel SPI node, plus an isolated 3.3 V to 5 V DC-to-DC convertor using an IL7817VE.
The board provides screw terminals for connections, plus test points for checking voltages and I/O. There are also LEDs to indicate DC-to-DC convertor input and output power. It uses a 2s2p board with thermal vias for optimal thermal performance.
The IL7817V is a high-speed, fully-isolated, data couplers with an integrated, one-quarter watt 3.3 V to 5 V DC-to-DC boost convertor. This level of integration dramatically reduces chip count and board area. |
