IL7614V-01: Isolated 3-Ch SPI w/Integ DC-DC Conv Eval Board

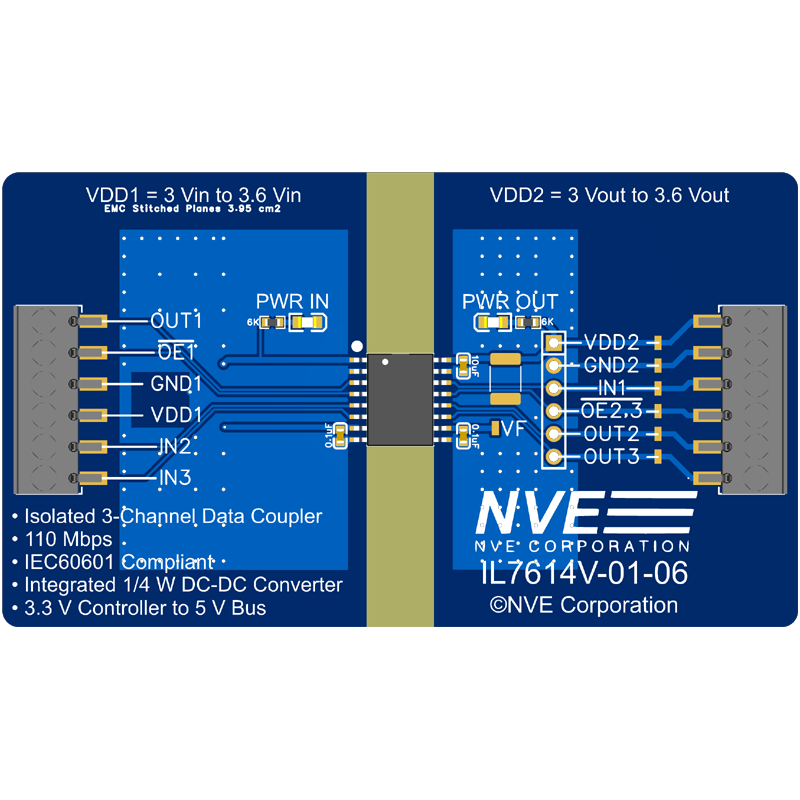

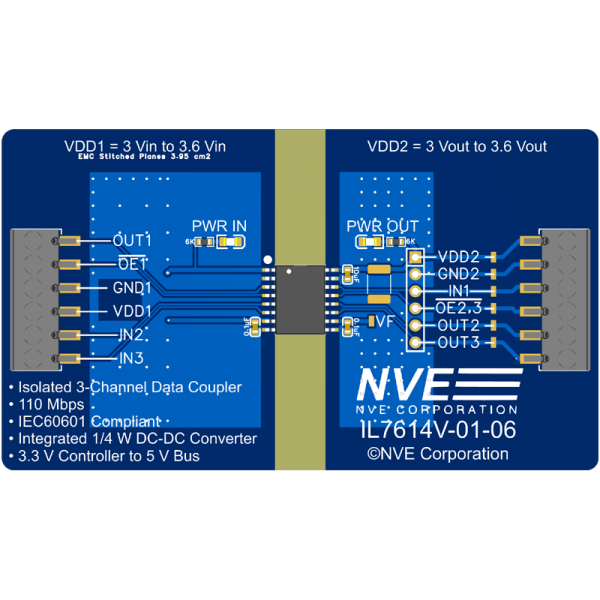

This Evaluation Board provides a complete isolated three-channel SPI node, plus an isolated 3.3 V to 3.3 V DC-to-DC convertor using an IL7614VE. It is ideal for half-duplex SPI applications.

These 2 x 3.5-inch (50 x 90 mm) boards also include screw terminal and test pads, and uses a 2s2p board with vias for optimal thermal performance. LEDs indicate DC-to-DC convertor input and output power.

The IL7614V is a high-speed, fully-isolated, data couplers with an integrated, one-quarter watt 3.3 V-to-3.3 V DC-to-DC convertor. This level of integration dramatically reduces chip count and board area.
