IL717-1-01: 4-Ch (3-xmt, 1-rcv) QSOP Isolator Eval Bd

  • Part Number
  • IL717-1-01
  • Total Channels
  • 4
  • Transmit Channels
  • 3
  • Receive Channels
  • 1
  • Max. Temperature (°C)
  • 100
  • Isolation Voltage (Vrms)
  • 2500

Description:

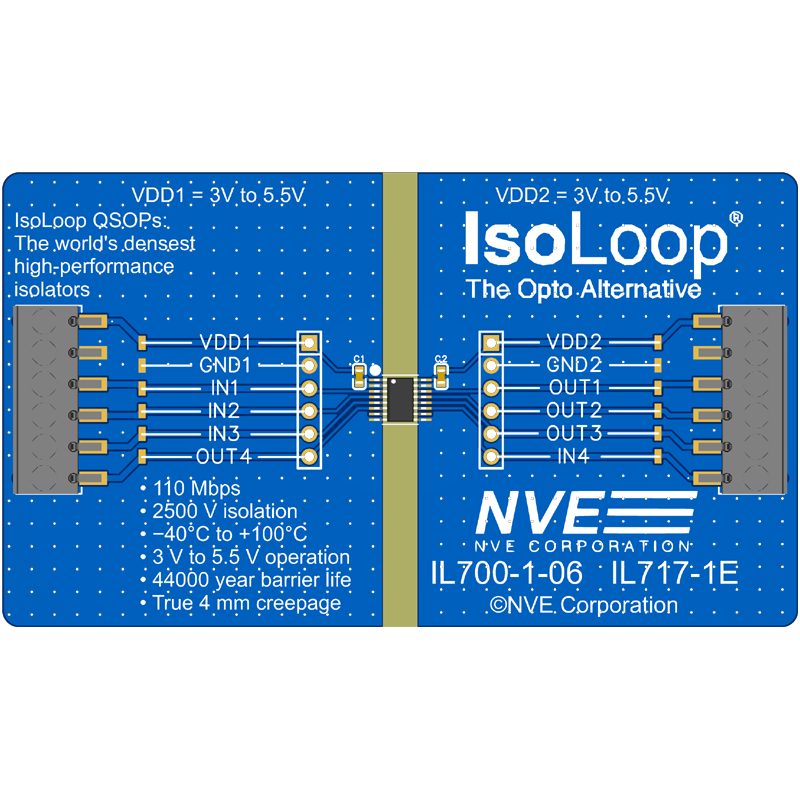

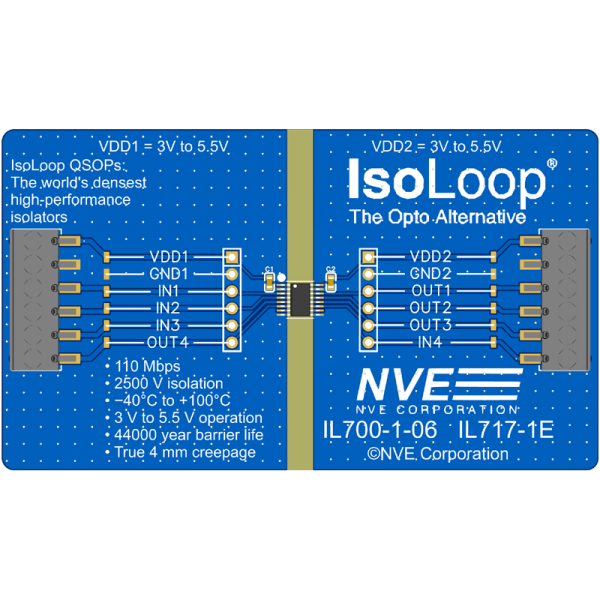

These 2 x 3.5-inch (50 x 90 mm) boards have an IL717-1E ultraminiature four-channel (three transmit, one receive) QSOP isolator, two bypass capacitors as recommended, screw connections, test pads, and provisions for header pins.

The board lets you evaluate the world smallest high-performance isolators.
$49.95
50 in stock
