IL716-01: 4-Ch (2 ea dir) Wide-Body Isolator Eval Bd

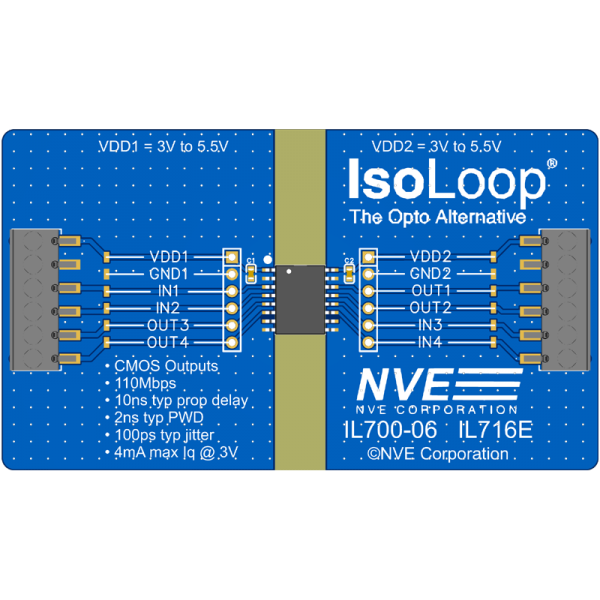

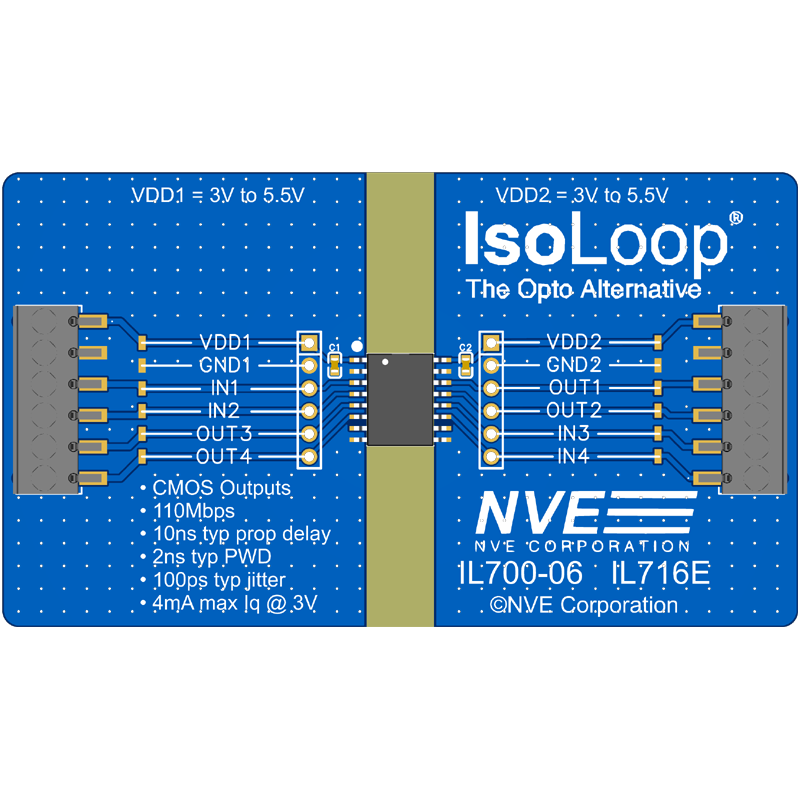

These 2 x 3.5-inch (50 x 90 mm) boards have an IL716E four-channel (two each direction) wide-body isolator, two bypass capacitors as recommended, screw connections, test pads, and header pins.

The boards let you evaluate the world's best isolators.
IL716-01: 4-Ch (2 ea dir) Wide-Body Isolator Eval Bd
IL716-01 Data Sheet (.pdf)
Video(s):

Related Products

IL716E: 4-Channel (2 each direction) Isolator, 2.5 kV, Wide SOIC
IL716E: 4-Channel (2 each direction) Isolator, 2.5 kV, Wide SOIC

The IL716 is a 3.3-volt, multichannel isolated 110 Mbps CMOS-compatible logic buffer with automatic level shifting, 10 ns propagation delay, 3 ns pulse width distortion,

$7.69
View
IL716-1-01: 4-Ch (2 ea dir) QSOP Isolator Eval Bd
IL716-1-01: 4-Ch (2 ea dir) QSOP Isolator Eval Bd

These 2 x 3.5-inch (50 x 90 mm) boards have an IL716-1E four channel (two each direction) ultraminiature QSOP isolator, two bypass capacitors as

$49.95
View
IL716V-01: 4-Ch (2 ea dir) Wide-Body 7 kV Isolator Eval Bd
IL716V-01: 4-Ch (2 ea dir) Wide-Body 7 kV Isolator Eval Bd

These 2 x 3.5-inch (50 x 90 mm) boards have an IL716VE isolator, two bypass capacitors as recommended, screw connections, test pads, and provisions

$49.95
View
Part Number: IL716-01
Quantity In Stock: 50
 $49.95
Quantity:


Contact us for higher volume pricing.
