IL715-3-01: 4-Ch (all same dir) Narrow-Body Isolator Eval Bd

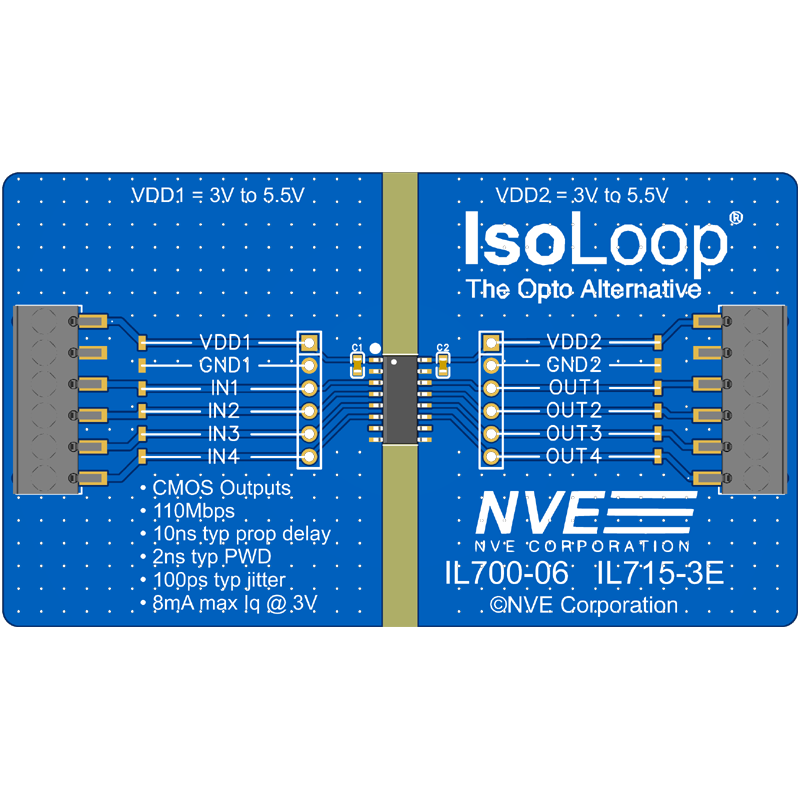

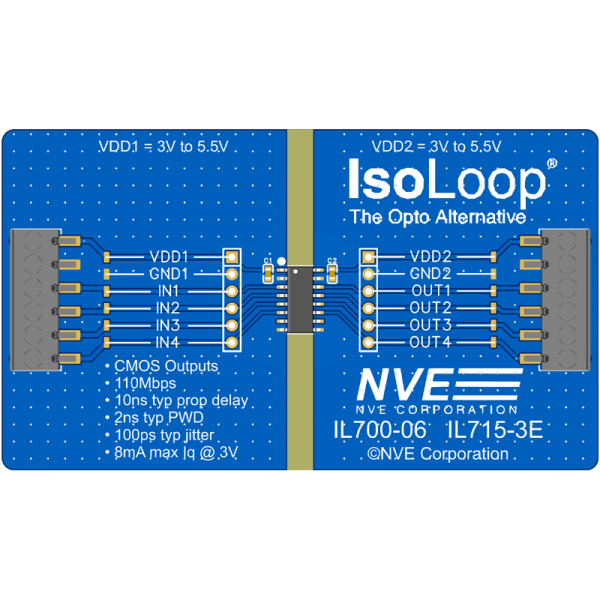

These 2 x 3.5-inch (50 x 90 mm) boards have an IL715-3E four-channel (all the same direction) narrow-body isolator, two bypass capacitors as recommended, screw connections, test pads, and provisions for header pins.

The boards let you evaluate the world's best isolators.
IL715-3-01: 4-Ch (all same dir) Narrow-Body Isolator Eval Bd
IL715-3-01 Data Sheet (.pdf)
Video(s):


Related Products

IL715-3E: 4-Channel (all same direction) Isolator, 2.5 kV, Narrow SOIC
IL715-3E: 4-Channel (all same direction) Isolator, 2.5 kV, Narrow SOIC

The Il715-3 is a 3.3/5V, multichannel isolated 110 Mbps CMOS-compatible logic buffer with automatic level shifting, 10 ns propagation delay, 3 ns pulse width distortion,

$7.69
View
IL715-01: 4-Ch (all same dir) Wide-Body Isolator Eval Bd
IL715-01: 4-Ch (all same dir) Wide-Body Isolator Eval Bd

These 2 x 3.5-inch (50 x 90 mm) boards have an IL715E four-channel (all the same direction) wide-body isolator, two bypass capacitors as recommended,

$49.95
View
IL715-1-01: 4-Ch (all same dir) QSOP Isolator Eval Board
IL715-1-01: 4-Ch (all same dir) QSOP Isolator Eval Board

These 2 x 3.5-inch (50 x 90 mm) boards have an IL715-1E four-channel (all the same direction) ultraminiature QSOP isolator, two bypass capacitors as

$49.95
View
Part Number: IL715-3-01
Quantity In Stock: 50
 $49.95
Quantity:


Contact us for higher volume pricing.
