IL610A-1-01: IL610A Passive-In Isolator Eval Board

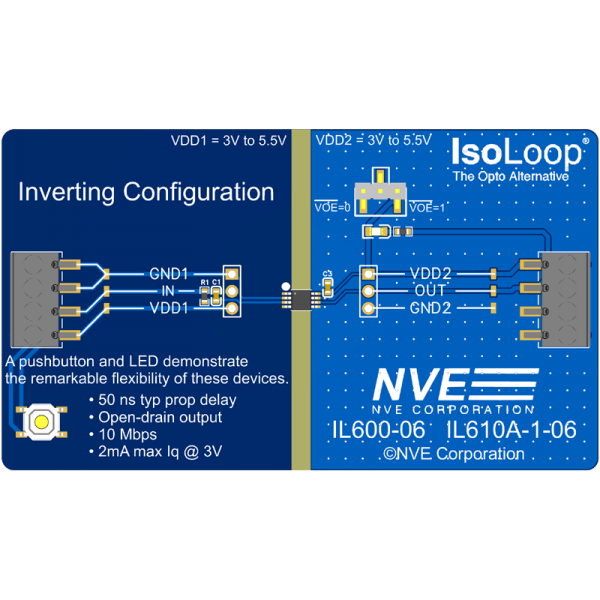

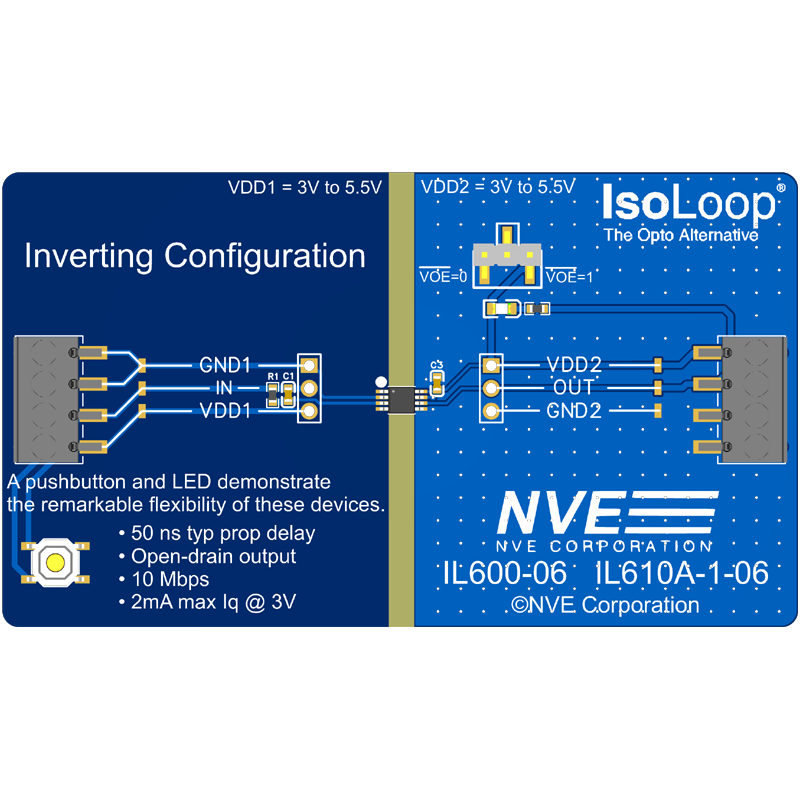

This 2 x 3.5-inch (50 x 90 mm) board showcases the unique IL610A-1E passive-input, open-drain isolator. A pushbutton and LED demonstrate the remarkable flexibility of this devices. The evaluation board also has an input resistor, input capacitor, power-supply bypass capacitor as recommended, as well as screw connections, test points, and provisions for header pins.

Award-winning IL600-Series Isolators provide unique flexibility similar to LED-input optocouplers but with better performance and higher package density. The MSOP package is the world's smallest isolator.

The devices are manufactured with NVE’s patented IsoLoop spintronic Giant Magnetoresistive (GMR) technology for small size, high speed, and low power.
