IL4685-01: Isolated RS-485 Xcvr w/3 V bus DC-DC Conv Eval Bd

  • Part Number
  • IL4685-01
  • Bus Load (Unit Load)
  • Max. Temperature (°C)
  • Isolation Voltage (Vrms)

Description:

This Evaluation Board is a complete isolated RS-485 node using the IL4685E isolated transceiver with integrated isolated DC-DC convertor.

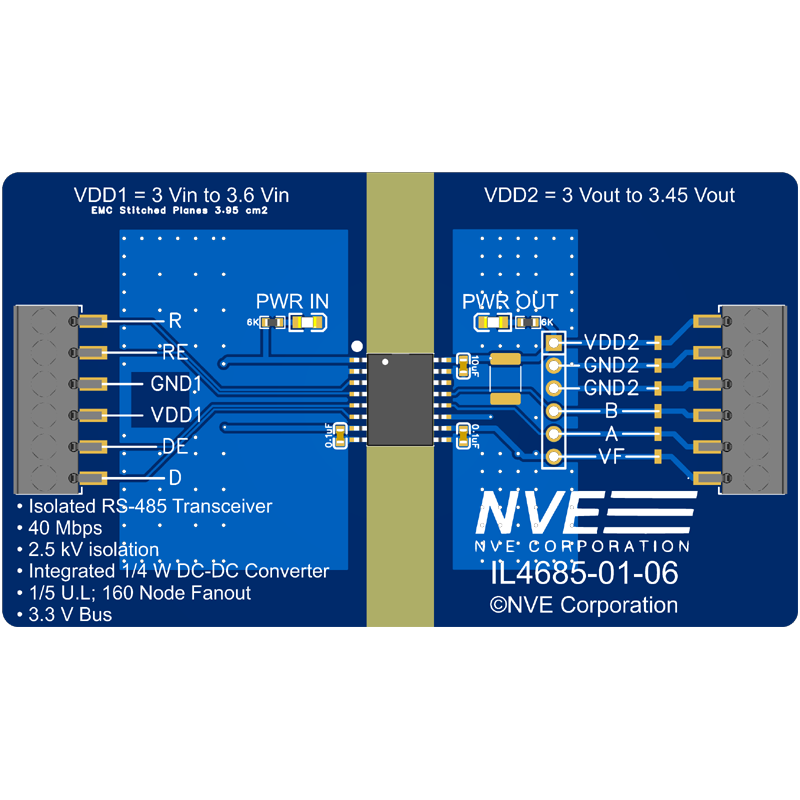

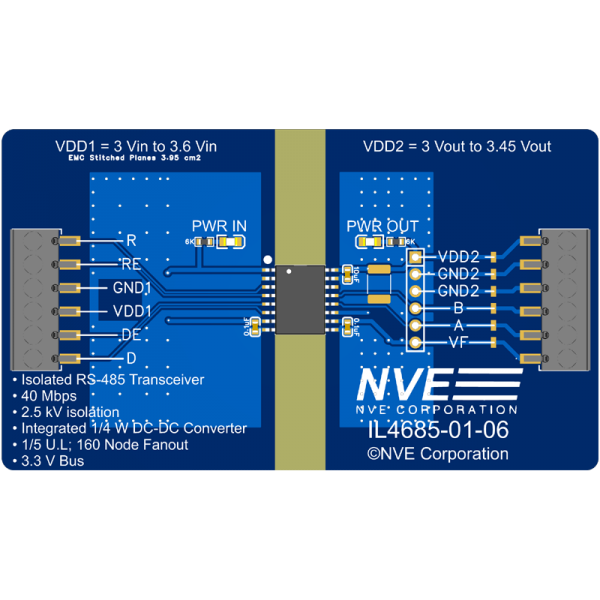

These 2 x 3.5-inch (50 x 90 mm) boards include screw terminals and test pads. LEDs indicate DC-to-DC convertor input and output power. A 2s2p board with vias optimizes thermal performance.

The IL4685E is a high-speed, fully-isolated, half-duplex differential bus transceiver with an integrated DC-to-DC convertor to create an isolated 3.3 volt bus supply using the 3.3 volt controller supply. This level of integration dramatically reduces chip count and board area.
$84.95
50 in stock
