IL4622-01: Isolated RS-485/RS-422 Xcvr w/DC-DC Conv Eval Bd

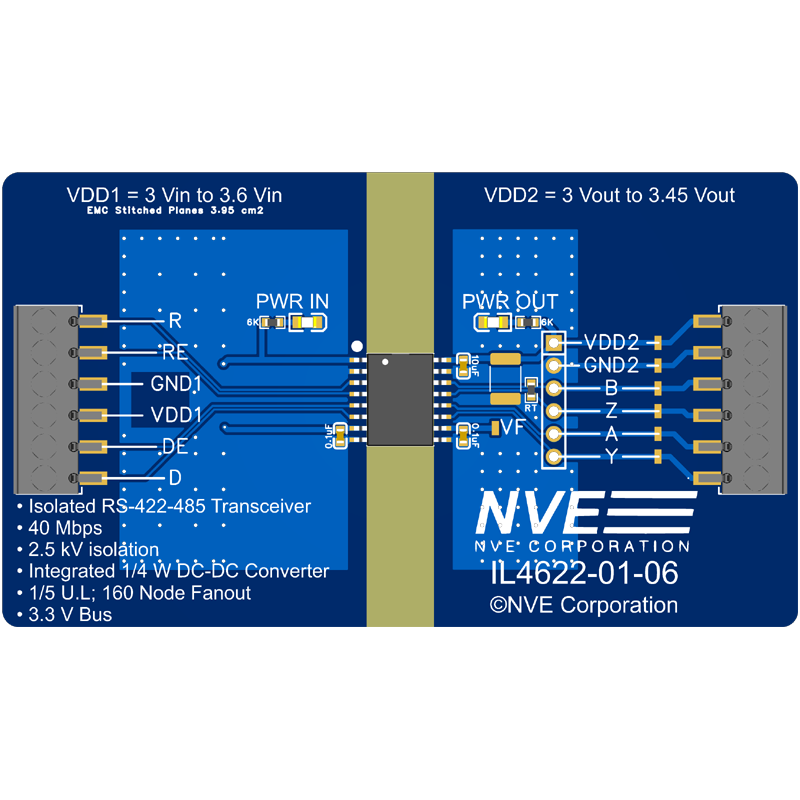

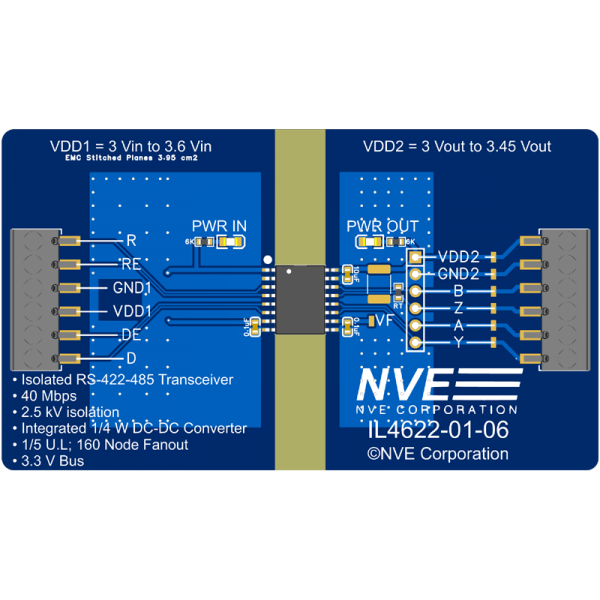

This Evaluation Board is a complete isolated RS-485 / RS-422 node using the IL4622E isolated transceiver with integrated isolated DC-DC convertor.

These 2 x 3.5-inch (50 x 90 mm) boards include screw terminals and test pads. LEDs indicate DC-to-DC convertor input and output power. A 2s2p board with vias optimizes thermal performance.

The IL4622E is a high-speed, fully-isolated, full duplex differential bus transceiver with an integrated 3.3-to-3.3 volt DC-DC convertor to provide a fully-isolated 3.3 volt bus supply using the controller supply. This level of integration dramatically reduces chip count and board area.
