IL41050TFD-1-01: QSOP Isolated CAN FD Evaluation Board

  • Part Number
  • IL41050TFD-1-01
  • Bus Load (Unit Load)
  • Bus Voltage (V)
  • Speed (Mbps)
  • Max. Temperature (°C)
  • Isolation Voltage (Vrms)

Description:

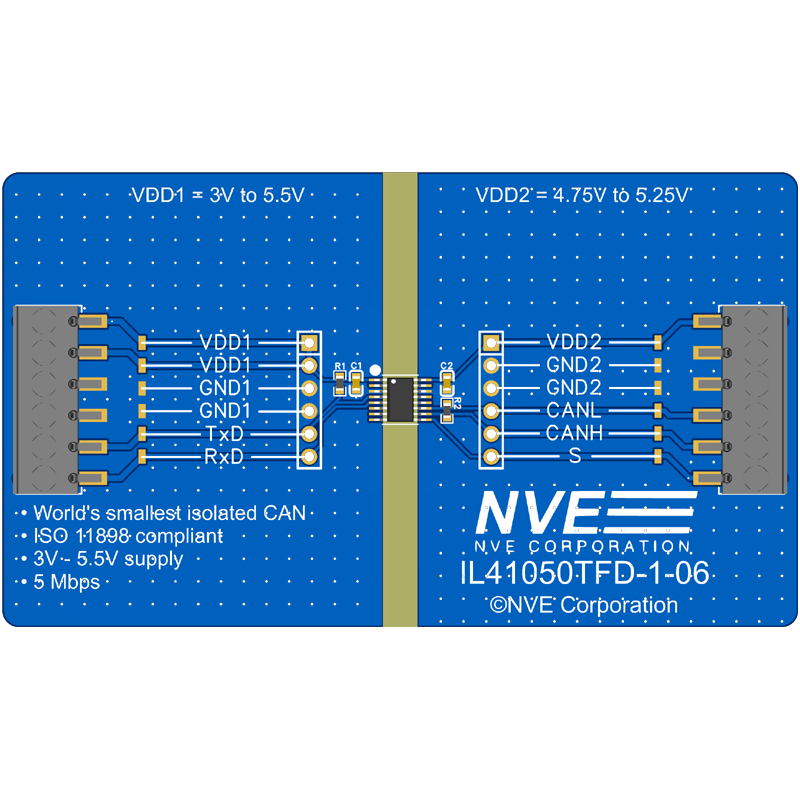

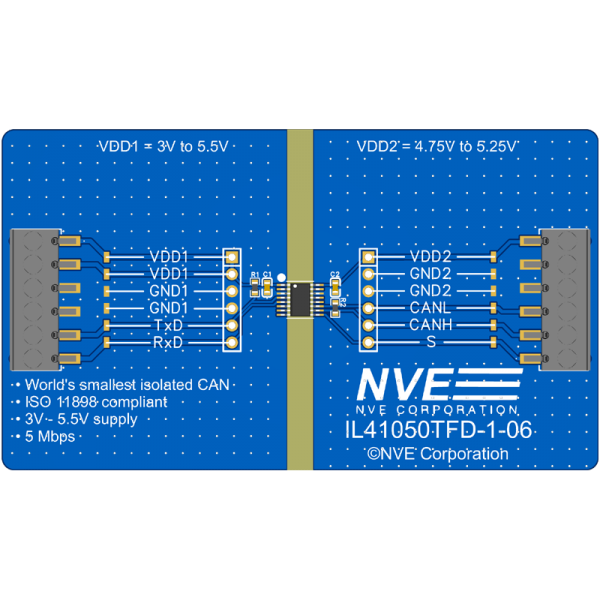

The isolated CAN FD Evaluation Board provides a complete isolated Controller Area Network node using the world smallest isolated CAN FD transceiver, the IL41050TFD-1E.

The board is fully ISO 11898 CAN compliant and accommodates 3V - 5.5V supplies. It provides screw terminal connections, termination resistors, pull-up resistors, and a jumper to select normal or silent mode.
$49.95
50 in stock
