AG975-07E: SM223 1.5 mT I2C Smart TMR Magnetometer Breakout Board
I²C Magnetic Sensors
AG975-07E: SM223 1.5 mT I2C Smart TMR Magnetometer Breakout Board
Part Number
AG975-07E
Board Size (mm)
15 x 19
Connections
Header
Sensor Function
Magnetometer
Technology
TMR
Magnetic Polarity
Bipolar
Field Measurement Range (mT)
−1.5 to +1.5
Resolution (bits)
12
Magnetic Operate Point (mT)
Programmable
Output
I²C; comparator
Sampling Speed (Sps)
15000
Supply Voltage (V)
2.2 to 3.6
Max. Temperature (°C)
125
Package
2.5 x 2.5 mm DFN6
IC Included?
Yes
Electronic Data Automation
(External Link)
Data Sheet
(.pdf)
Description:

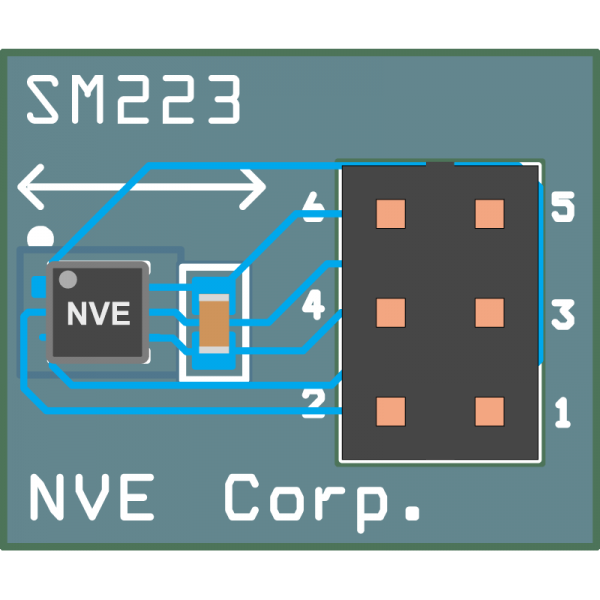

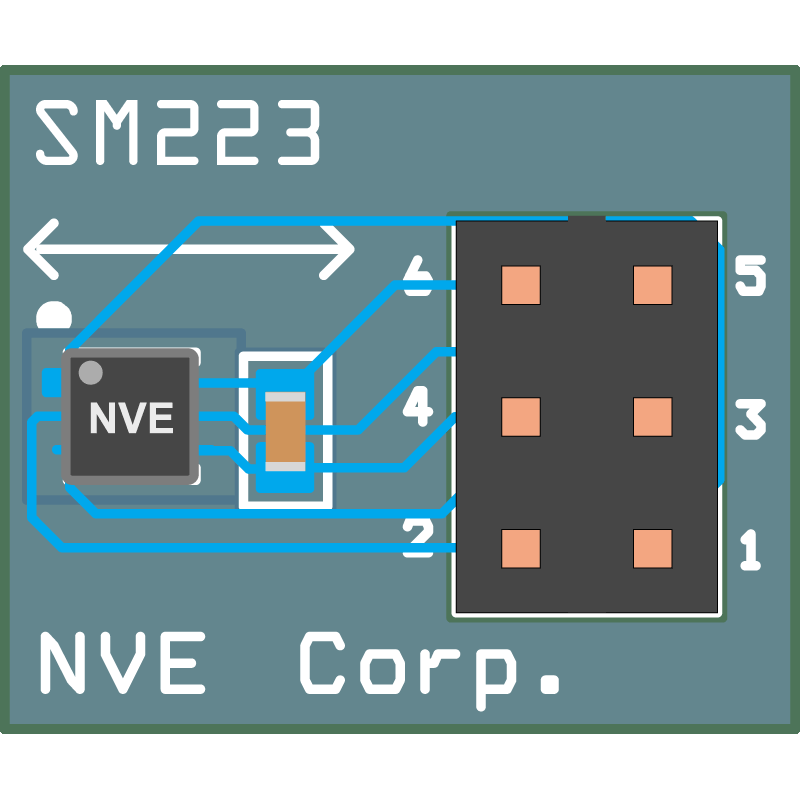

The AG975-07E provides easy connections to an SM223-10E high-sensitivity Smart Magnetometer. In addition to the sensor, the board has a recommended bypass capacitor and a six-pin header connected to each of the sensor I/O pads. The board is approximately 0.6 by 0.75 inches (15 x 19 mm).
$
19.95
Qty:
99999 in stock
Add to Cart
In your cart
Add to Cart
Notify me when in stock
Related Products
SM223-10E: High-Speed Smart TMR Magnetometer, 1.5mT, I2C, DFN6
$6.88
AG973-07E: SM223-10E Smart I²C TMR Magnetometer Evaluation Kit
$95.00
SM223-10E-EVB01: I2C 1.5 mT TMR Smart Sensor Breakout Board
$19.95
SM223-10E-EVB02: I2C 1.5 mT TMR Smart Current Sensor Eval Board
$19.95
