AG973-07E: SM223-10E Smart I²C TMR Magnetometer Evaluation Kit
AG973-07E: SM223-10E Smart I²C TMR Magnetometer Evaluation Kit
Part Number
AG973-07E
Board Size (mm)
41 x 25
Connections
Header
Screw Terminals
USB
Windows UI
Sensor Function
Magnetometer
Technology
TMR
Magnetic Polarity
Bipolar
Field Measurement Range (mT)
−1.5 to +1.5
Resolution (bits)
12
Magnetic Operate Point (mT)
Programmable
Output
I²C; comparator
Sampling Speed (Sps)
15000
Supply Voltage (V)
2.2 to 3.6
Max. Temperature (°C)
125
Package
2.5 x 2.5 mm DFN6
IC Included?
Yes
Magnet Included?
Yes
Data Sheet
(.pdf)
Description:
The AG973-07 Evaluation Kit has everything you need to test and evaluate the easy-to-use SM223-10E I2C Smart Magnetometer. The kit includes:
• A 1" x 1.6" (25 mm x 41 mm) evaluation board with:
- an SM228-10E sensor.
- a microcontroller connected to the sensor via I2C.
- a current-carrying trace under the sensor for evaluating as a current sensor.
• An LED indicating the state of the threshold output.
• A PWM board output for an analog representation of the measured magnetic field.

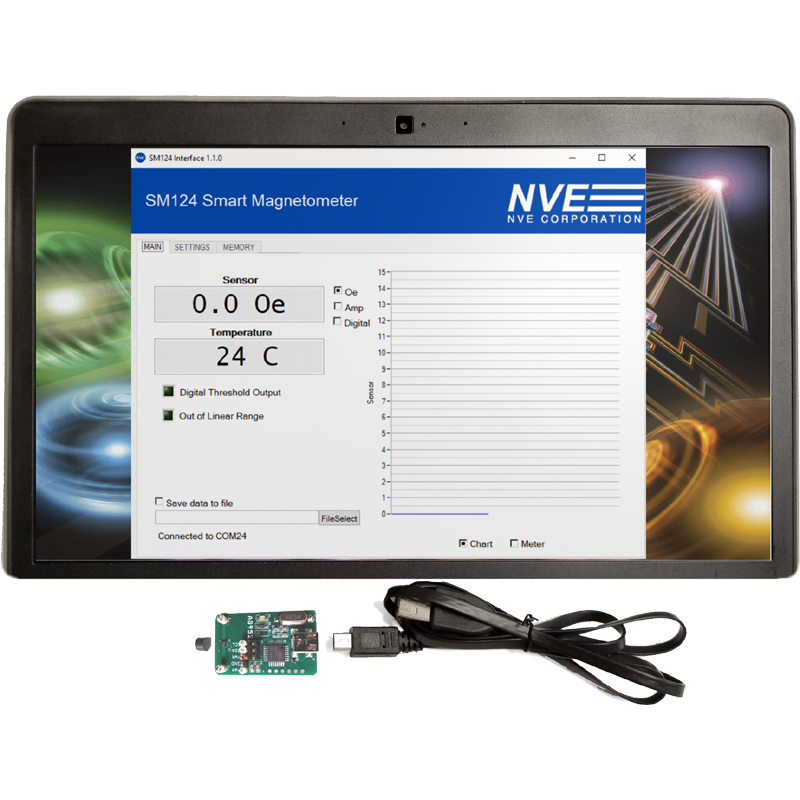

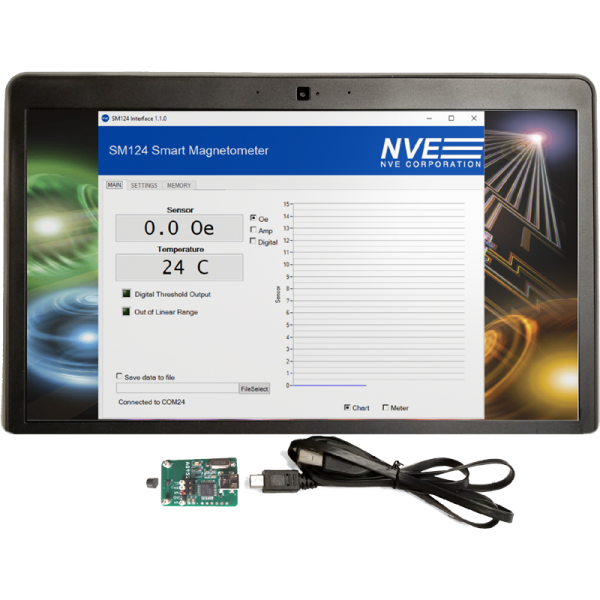

• A simple, intuitive graphical user interface.
• Simple software installation.
• USB cable to connect the Evaluation Board to a computer.
• A small ceramic magnet for evaluating as a proximity sensor.
$
95.00
Qty:
5 in stock
Add to Cart
In your cart
Add to Cart
Notify me when in stock
Related Products
SM223-10E: High-Speed Smart TMR Magnetometer, 1.5mT, I2C, DFN6
$6.88
AG975-07E: SM223 1.5 mT I2C Smart TMR Magnetometer Breakout Board
$19.95
SM223-10E-EVB01: I2C 1.5 mT TMR Smart Sensor Breakout Board
$19.95
SM223-10E-EVB02: I2C 1.5 mT TMR Smart Current Sensor Eval Board
$19.95
