AG969-07E: SM228-10E Smart I²C TMR Magnetometer Evaluation Kit
AG969-07E: SM228-10E Smart I²C TMR Magnetometer Evaluation Kit
Part Number
AG969-07E
Board Size (mm)
41 x 25
Connections
USB
Windows UI
Sensor Function
Magnetometer
Technology
TMR
Magnetic Polarity
Bipolar
Field Measurement Range (mT)
−15 to +15
Current Measurement Range (A)
>10
Resolution (bits)
12
Magnetic Operate Point (mT)
Programmable
Output
I²C; comparator
Sampling Speed (Sps)
15000
Supply Voltage (V)
2.2 to 3.6
Max. Temperature (°C)
125
Package
2.5 x 2.5 mm DFN6
IC Included?
Yes
Magnet Included?
Yes
Data Sheet
(.pdf)
Description:

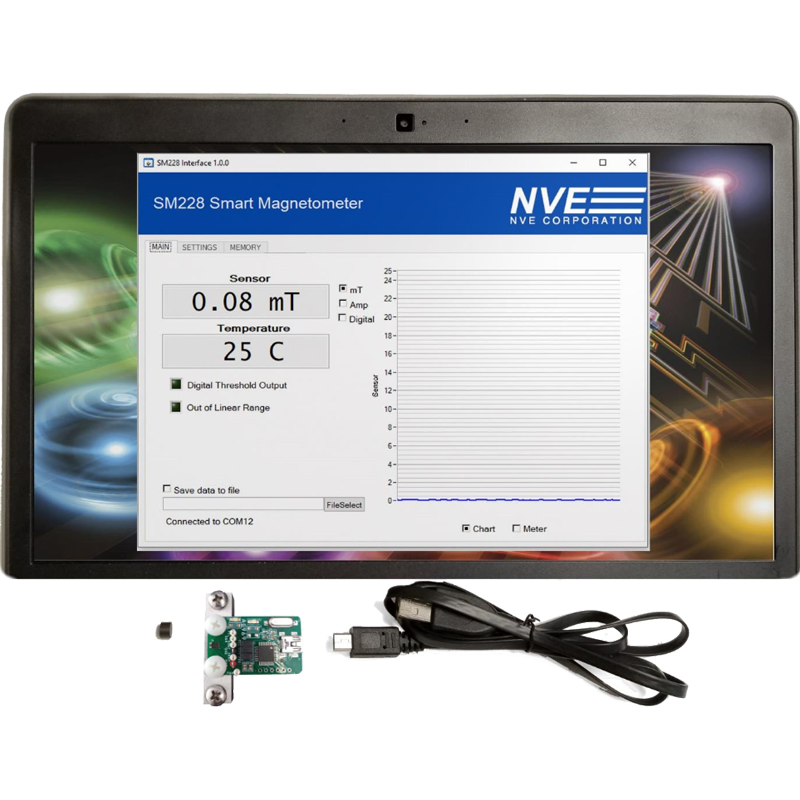

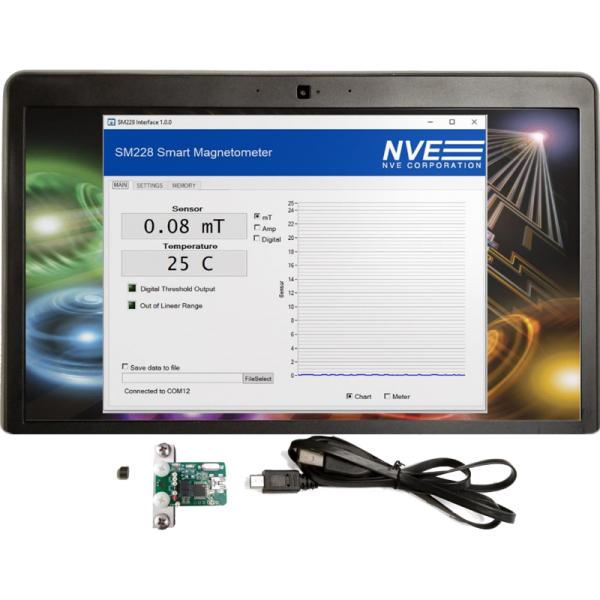

The AG969-07 Evaluation Kit has everything you need to test and evaluate the easy-to-use SM228-10E I2C Smart Magnetometer. The kit includes:
• A 1" x 1.6" (25 mm x 41 mm) evaluation board with:
- an SM228-10E sensor.
- a microcontroller connected to the sensor via I2C.
- a bus-bar for evaluating as a current sensor.
• An LED indicating the state of the threshold output.
• A PWM output for an analog representation of the measured magnetic field.
• A simple, intuitive graphical user interface.
• Simple software installation.
• USB cable to connect the Evaluation Board to a computer.
• A small ceramic magnet for evaluating as a proximity sensor.
$
95.00
Qty:
4 in stock
Add to Cart
In your cart
Add to Cart
Notify me when in stock
