AG967-07E: ASR022 ABZ Smart TMR Encoder Sensor breakout board

  • Part Number
  • AG967-07E
  • Magnetic Field Operating Range (mT)
  • 6 to 20
  • Resolution (bits)
  • 12
  • Supply Current @ 3.3 V (µA)
  • 4000
  • Max. Temperature (°C)
  • 125

Description:

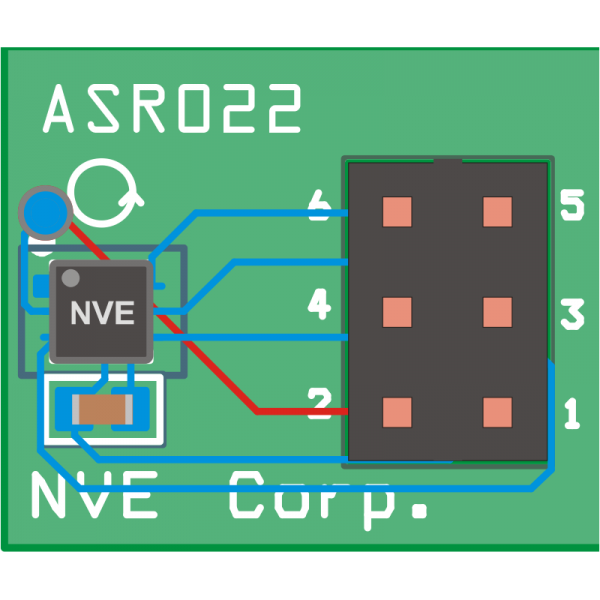

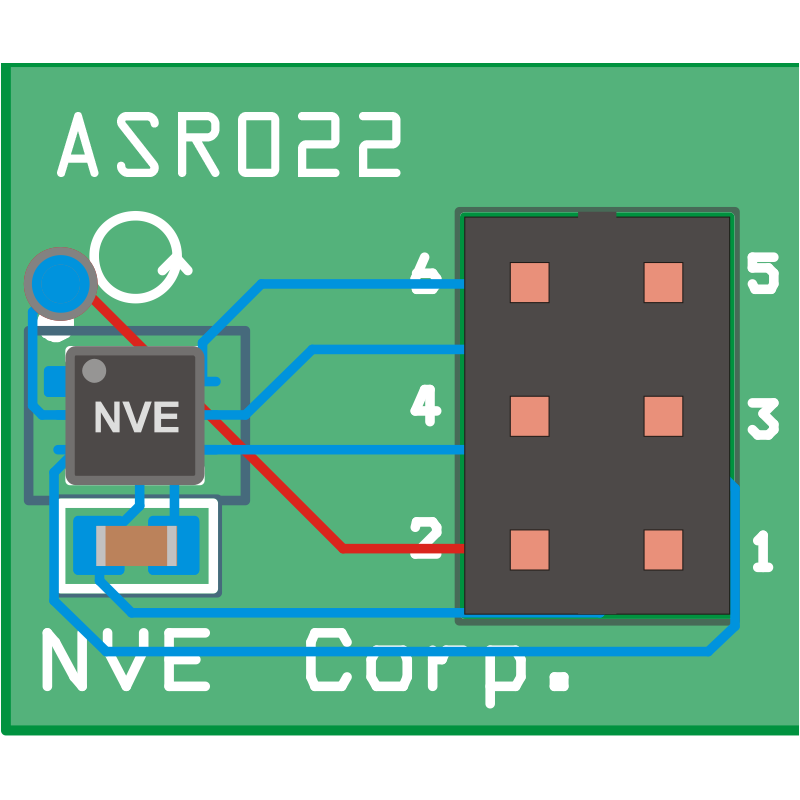

The AG967-07E provides easy connections to an ASR022-10E ABZ TMR Encoder Sensor. In addition to the sensor, the board has a recommended bypass capacitor and a six-pin header connected to each of the sensor I/O pads. The board is approximately 0.5 by 0.6 inches (12 x 15 mm).
$19.95
14 in stock
