AG963-07E: ASR012-10E I²C Smart Angle Sensor Evaluation Kit

  • Part Number
  • AG963-07E
  • Magnetic Field Operating Range (mT)
  • 6 to 20
  • Resolution (bits)
  • 12
  • Supply Current @ 3.3 V (µA)
  • 4000
  • Max. Temperature (°C)
  • 125

Description:

The AG963-07E Evaluation Kit has everything you need to calibrate, test, and evaluate the remarkable ASR012-10E I2C Smart Angle Sensor. The kit includes:

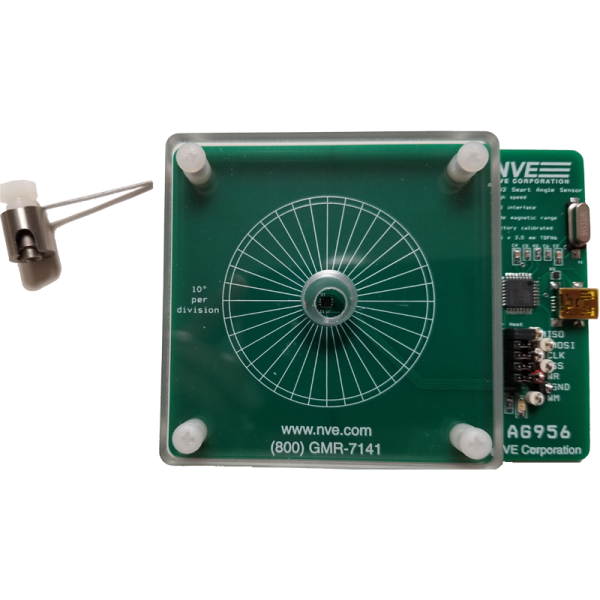

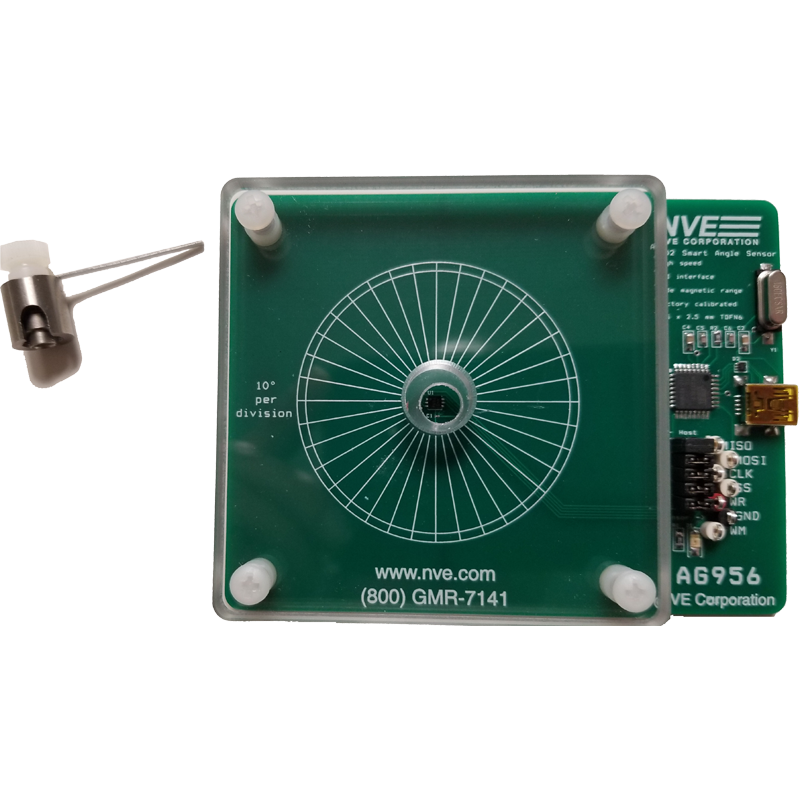

    • An evaluation board with:
          - an ASR012-10E sensor
          - a diametrical magnet
          - magnet fixturing

    • An interface board with:
          - a microcontroller connected to the sensor via I²C
          - flexibility to power from USB or external power supply
          - isolated USB interface for safety and low noise.

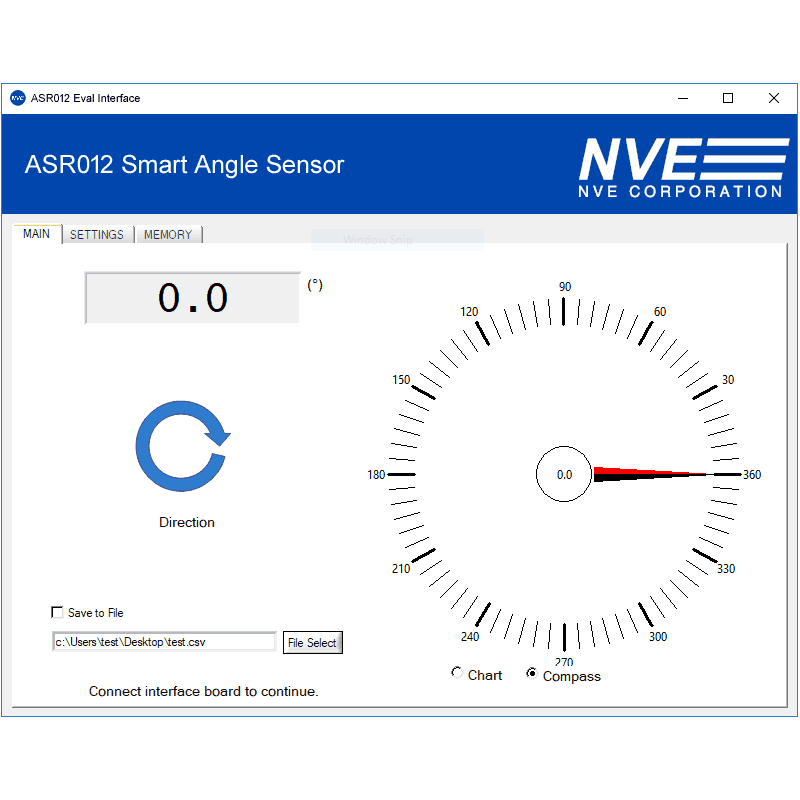

    • A powerful, intuitive graphical user interface.

    • Simple software installation.

    • USB cable to connect the Evaluation Board to a computer.
$195.00
4 in stock
