AG956-07E: ASR002-10E Smart SPI Angle Sensor Evaluation Kit

  • Part Number
  • AG956-07E
  • Magnetic Field Operating Range (mT)
  • 6 to 20
  • Resolution (bits)
  • 12
  • Supply Current @ 3.3 V (µA)
  • 4000
  • Max. Temperature (°C)
  • 125

Description:

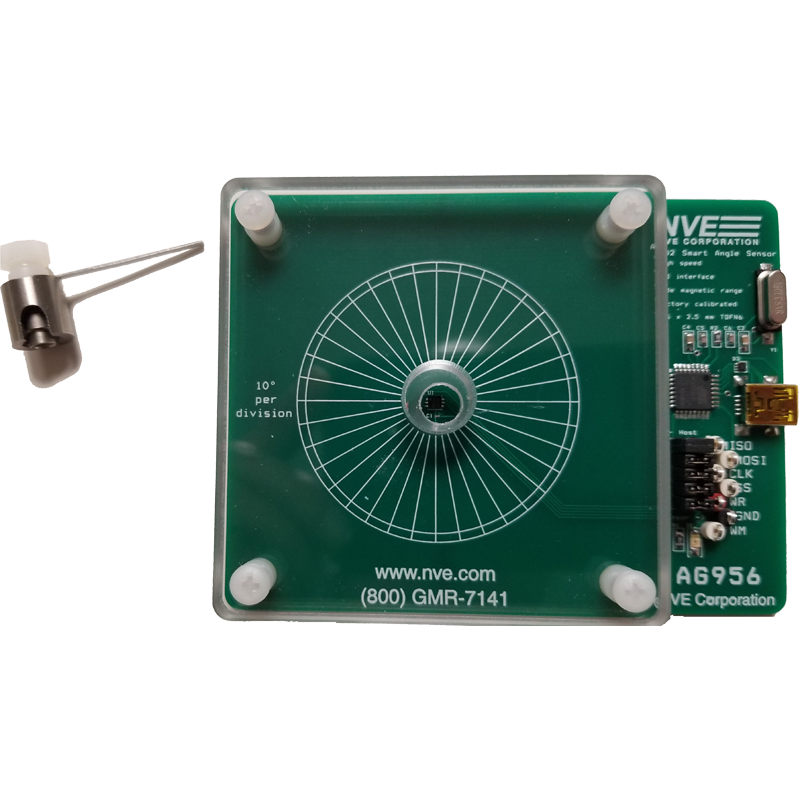

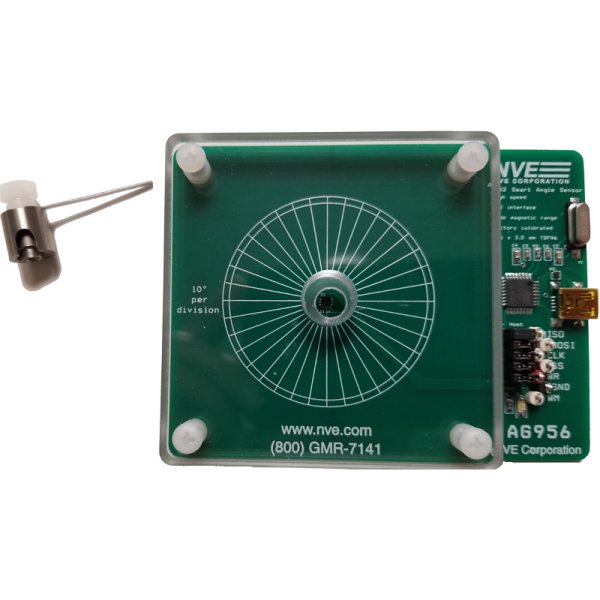

The AG956-07 Evaluation Kit has everything you need to calibrate, test, and evaluate the remarkable ASR002-10E Smart Angle Sensor. The kit includes:
    • An evaluation board with:
          - an ASR002-10E sensor
          - a diametrical magnet
          - magnet fixturing and a

    • An interface board with:
          - a microcontroller connected to the sensor via SPI
          - flexibility to power from USB or external power supply
          - isolated USB interface for safety and low noise.

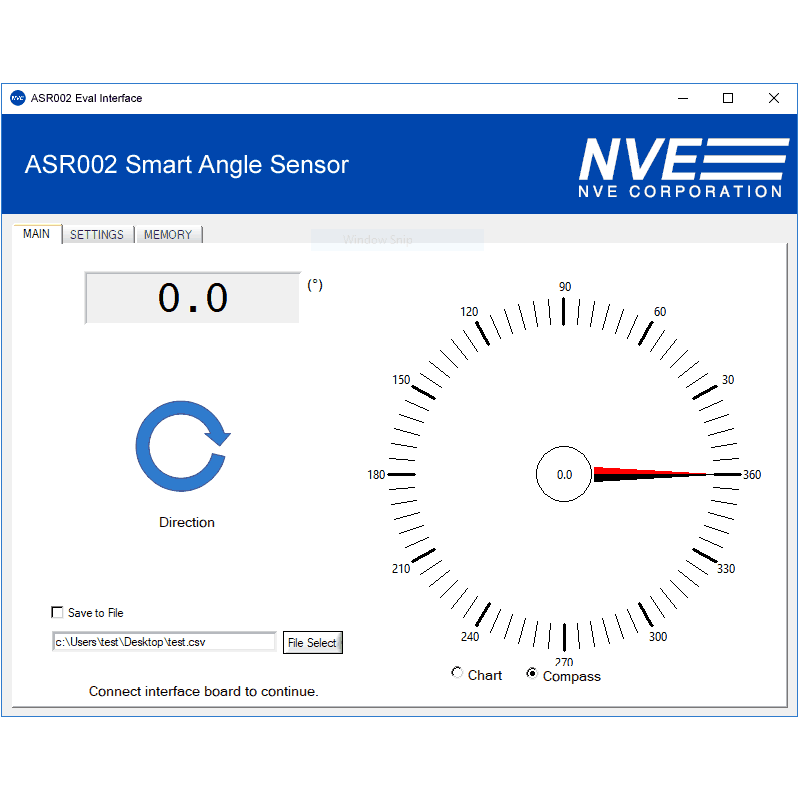

    • A powerful, intuitive graphical user interface.

    • Simple software installation.

    • USB cable to connect the Evaluation Board to a computer.
$195.00
9 in stock
