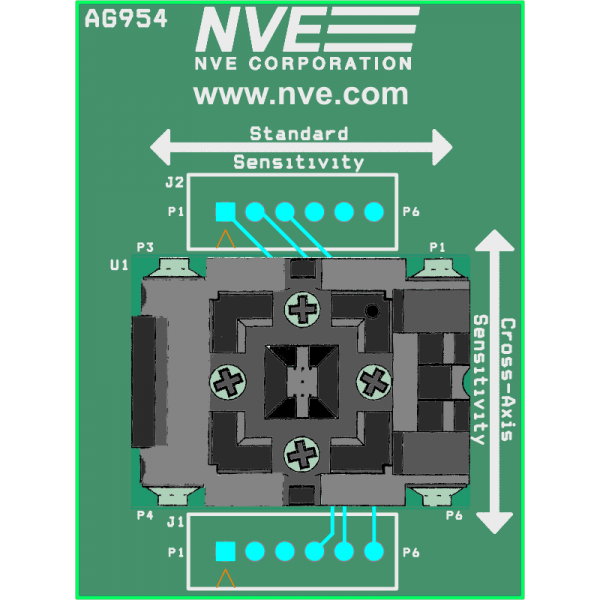

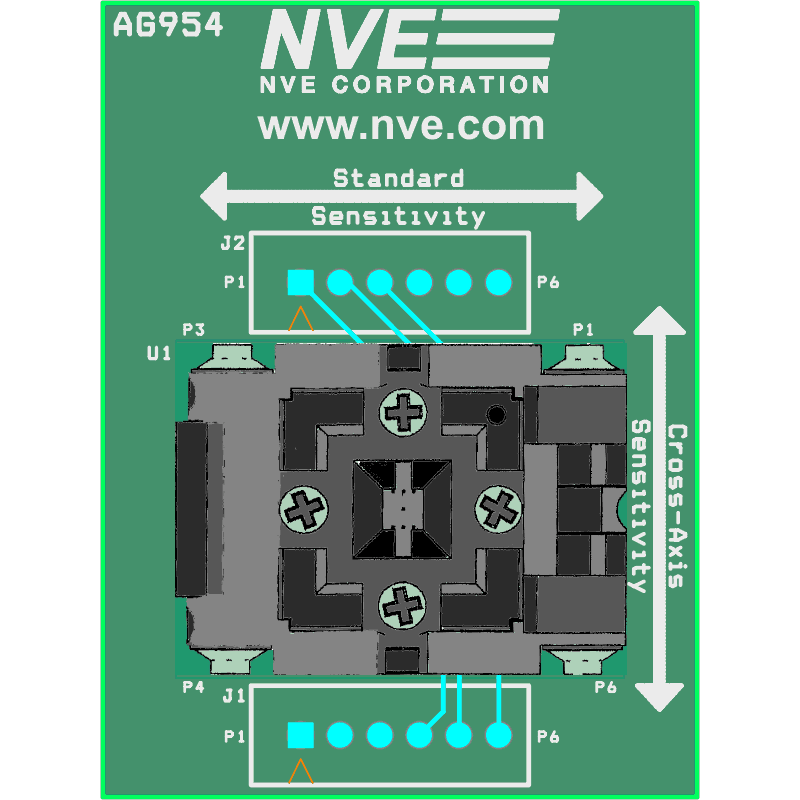

The AG954-07E provides a socket for easy programming and prototyping of DFN6 devices without soldering and unsoldering.
The custom socket is compatible with NVE 2.5 mm x 2.5 mm DFN6 package parts (-10E suffixes).
The board is 1.5" x 2" (38 mm x 50 mm), and uses brass hardware to minimize magnetic interference with the socketed sensor.
A 0.1"-spaced header provides for connections to the sensors, and a row of 0.1"-spaced through-holes allows for auxiliary parts such as a decoupling capacitor or an LED. |
