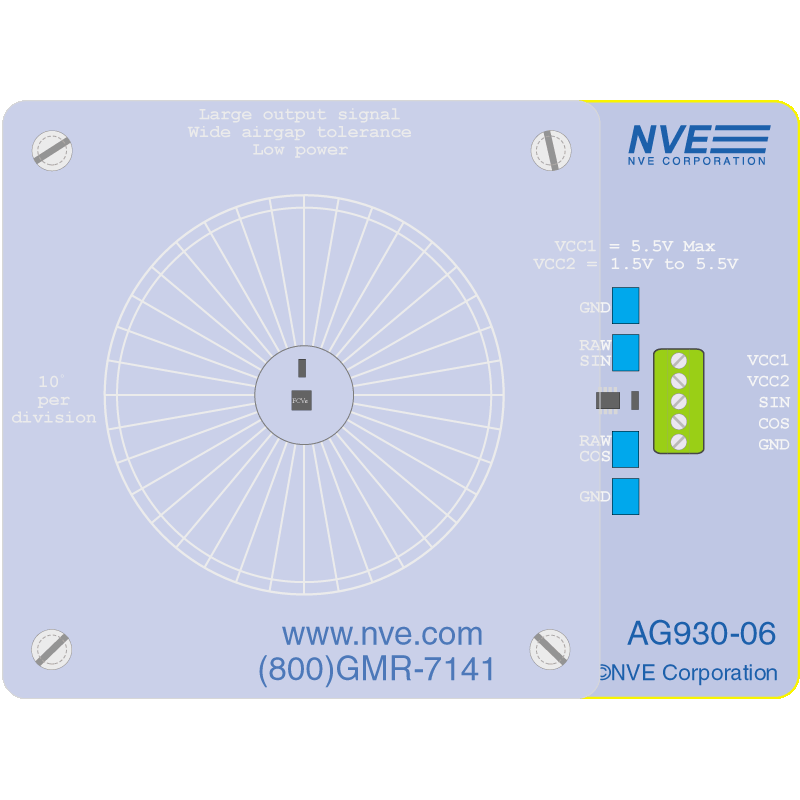

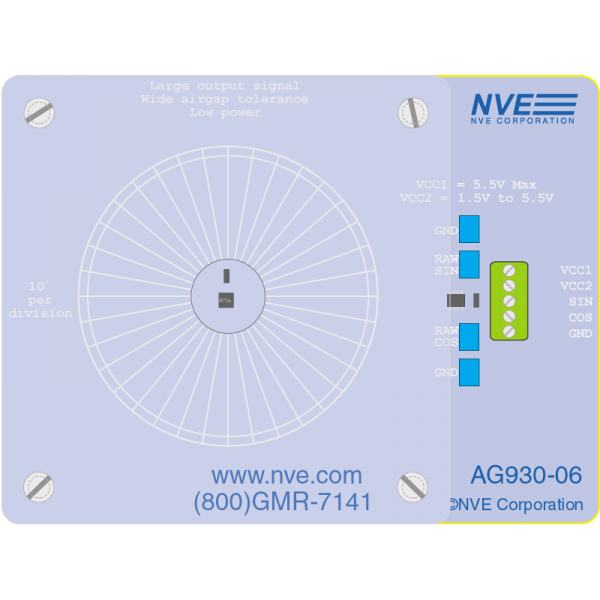

The kit includes a circuit board with an AAT001-10E 1.25 megohm Angle Sensor and a unity-gain buffer amplifier. The circuit board can be powered with a 1.7 V to 5.5 V power supply. An angular reticle on the circuit board aids in characterizing output versus angle.
The kit also includes a split-pole magnet and a plastic magnet locating fixture.
