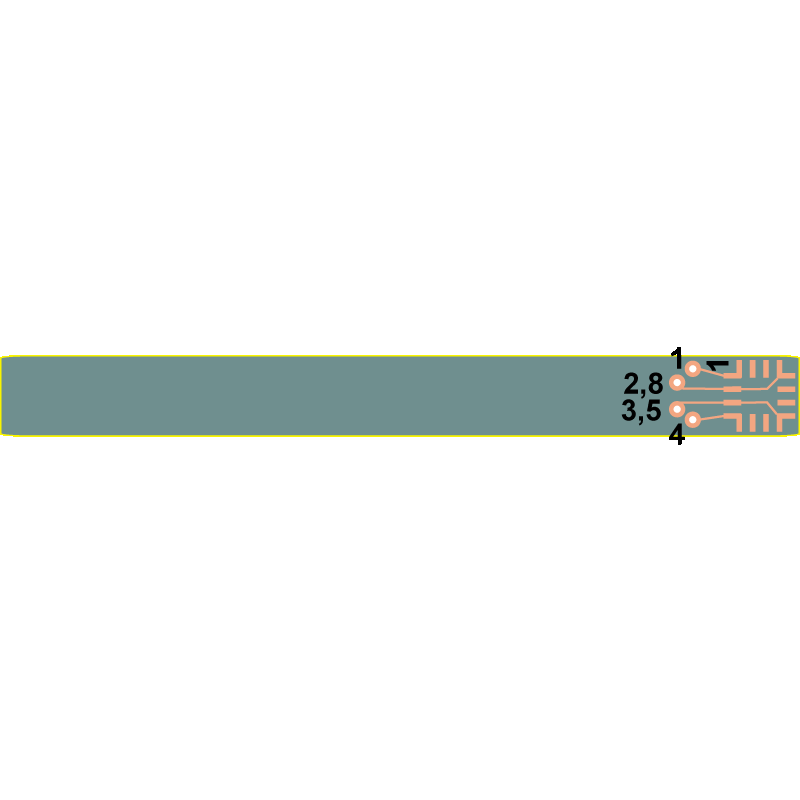

AG004-06: SOIC8 Printed Circuit Board (3" x 0.3")
AG004-06: SOIC8 Printed Circuit Board (3" x 0.3")
Part Number
AG004-06
Board Size (mm)
73 x 8
Connections
Header (not incl.)
Package
SOIC8
IC Included?
No
Data Sheet
(.pdf)
Description:
A 3 x 0.3 inch (76 x 8 mm) PCB to demonstrate AA-Series SOIC sensors (-02E suffix; order sensors separately).
This PCB is also included in the AG001-01 Sensor Evaluation Kit.
$
4.25
Qty:
1317 in stock
Add to Cart
In your cart
Add to Cart
Notify me when in stock
