AG001-01E: GMR Analog Sensor Evaluation Kit
Magnetic Sensors for Arduino
AG001-01E: GMR Analog Sensor Evaluation Kit
Part Number
AG001-01E
Board Size (mm)
76 x 6
Connections
Header
Technology
GMR
Magnetic Polarity
Omnipolar
Field Measurement Range (mT)
0.06 to 0.3
Sensitivity (mV/V/mT)
150
Output
Bridge
Min. Detectable Field (µT)
10
Direction of Sensitivity
Standard
Supply Voltage (V)
0 to 12
Bridge Resistance (kΩ)
2
Max. Temperature (°C)
150
Package
SOIC8
IC Included?
Yes
Electronic Data Automation
(External Link)
Data Sheet
(.pdf)
Description:

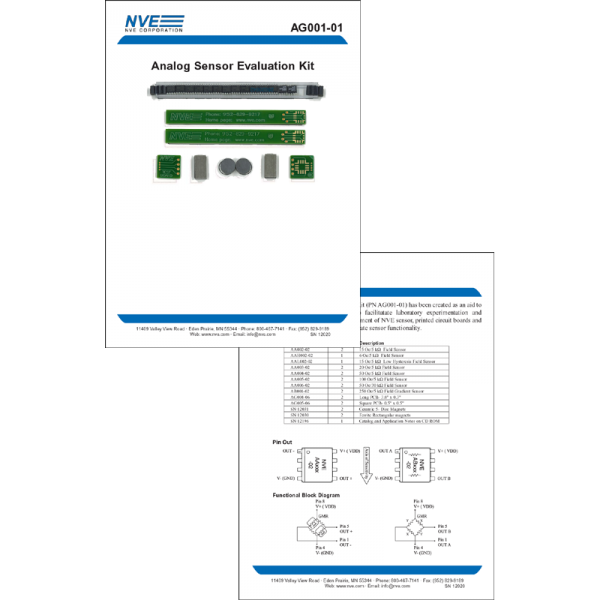

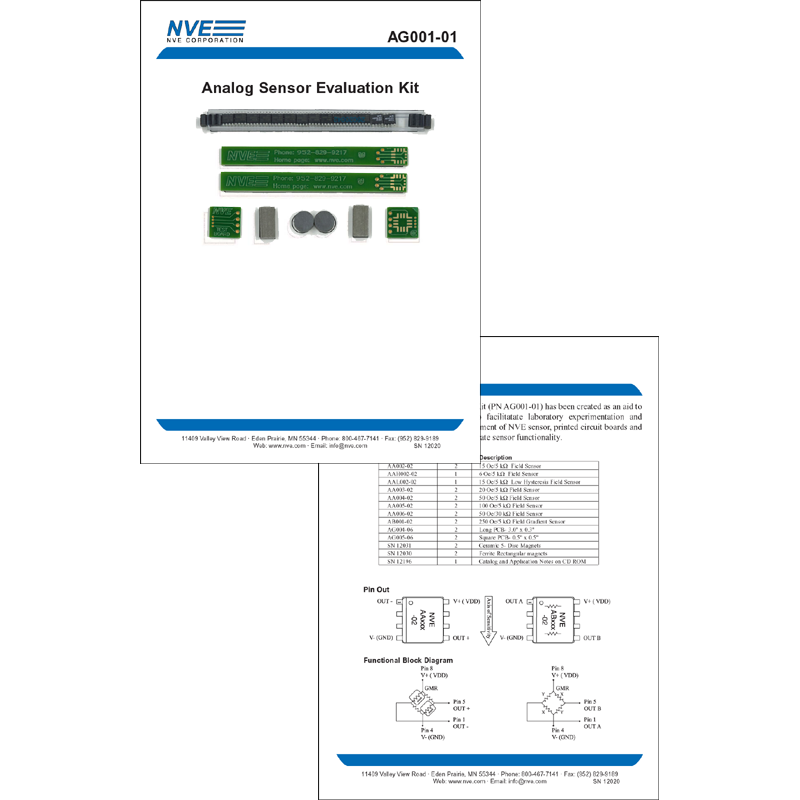

The AG001-01E GMR Analog Sensor Evaluation Kit is designed for experimentation and development. The kit contains an assortment of 14 NVE analog sensors plus several printed circuit boards and various permanent magnets. It includes the high-sensitivity AAH002 sensor. The kit contains only RoHS compliant parts.
$
60.00
Qty:
4 in stock
Add to Cart
In your cart
Add to Cart
Notify me when in stock
