Smart
TMR Magnetometer |
|
|
 The

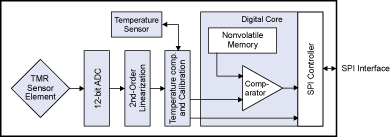

new SM225-10E Smart Magnetometer provides a unique combination of speed
and precision. The smart sensor combines a Tunneling Magnetoresistance (TMR) sensor
element with sophisticated digital signal processing. A fast, reliable SPI interface
provides data as well as an external programming interface:
Unlike awkward, old-fashioned Hall-effect sensors, TMR is sensitive in-plane for
optimal current sensing and easy mechanical interfaces.
Key SM225-10E features and specifications include:
• Wide 0 to 150 Oe / 0 to 15 mT linear range
• Can detect magnets more than 50 mm away
• Fast SPI interface
• 2% FS accuracy for 0 to 125°C
• Fast 15 kSps update rate
• Factory calibrated
• Programmable offset and gain compensation
• -40°C to 125°C operating range
• Ultraminiature 2.5 x 2.5 mm TDFN package
A Family of Smart Magnetometers
The SM225 is the third member of NVE’s groundbreaking smart magnetometer
line, joining the general-purpose SM124
and the ultra-accurate SM324.
Download
the SM225 Datasheet >
The SM225-10E is in
stock for immediate delivery.
Evaluation
Kit
The AG953-07 Evaluation Kit has everything you need to calibrate, test, and evaluate
the remarkable SM225-10E Smart Magnetometer:
The evaluation kit includes:
| •
|
An
evaluation board with: |
|
-
|
an SM225-10E sensor.
|
| |
-
|
a microcontroller connected
to the sensor via SPI.
|
| |
-
|
a current-carrying
trace under the sensor for evaluating as a current sensor.
|
| |
-
|
a PWM output for tracking
the field with a voltmeter.
|
| •
|
A
powerful, intuitive graphical user interface.
|
| •
|
Simple
software installation.
|
| • |
USB
cable to connect the Evaluation Board to a computer.
|
| • |
A
small ceramic magnet for evaluating as a proximity sensor. |
Evaluation kits are in
stock for immediate delivery.
|
|
|
|
Low
Supply Current
with the World’s Only TMR Isolators |
|
|
A new demonstration
of the world’s only Tunneling Magnetoresistance isolators shows how little
current they use.

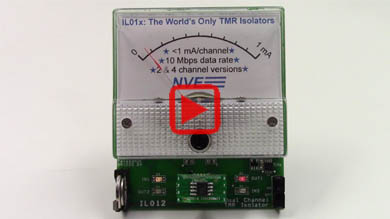

We power an IL012 isolator with a single lithium button cell, and show that the
quiescent current is less than 0.1 mA per channel:
IL01x Isolators are ideal for battery-powered instruments or 4-20 milliamp current
loops.
Various two- and four-channel configurations are available.
Key specifications include:
• 0.3 mA/channel typ. quiescent current
• 10 Mbps guaranteed data rate
• No carriers or clocks for low EMI
• 44000 year barrier life
Download
IL01x Datasheet »
|
 |
|
